discus xl
RGBW

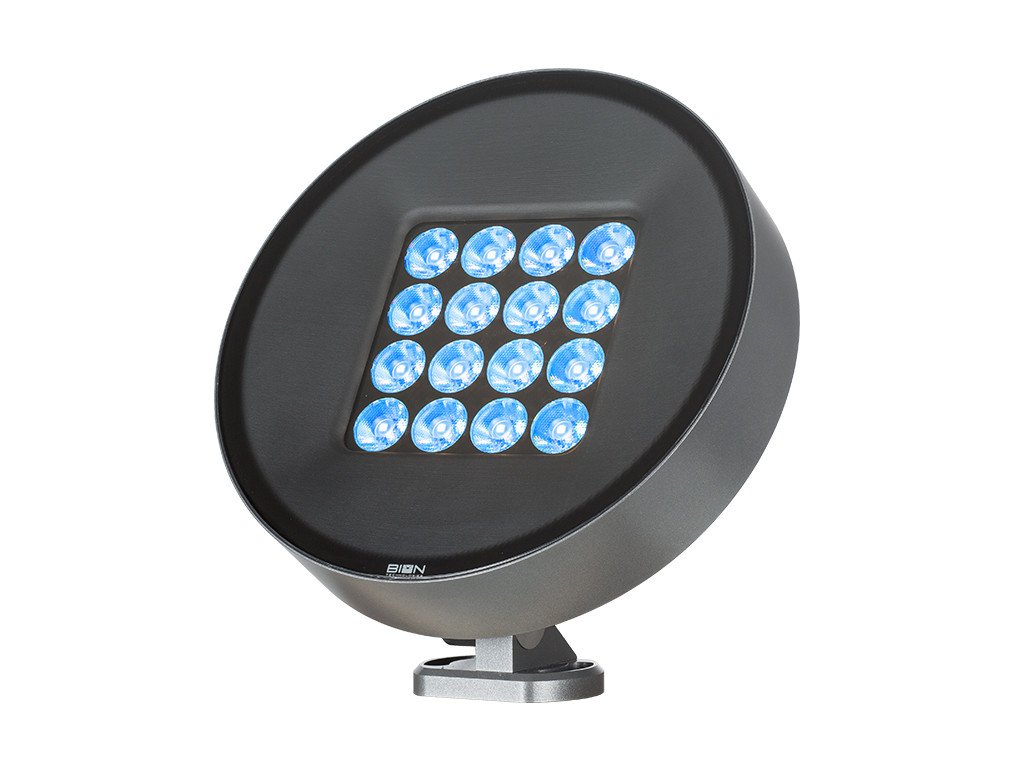

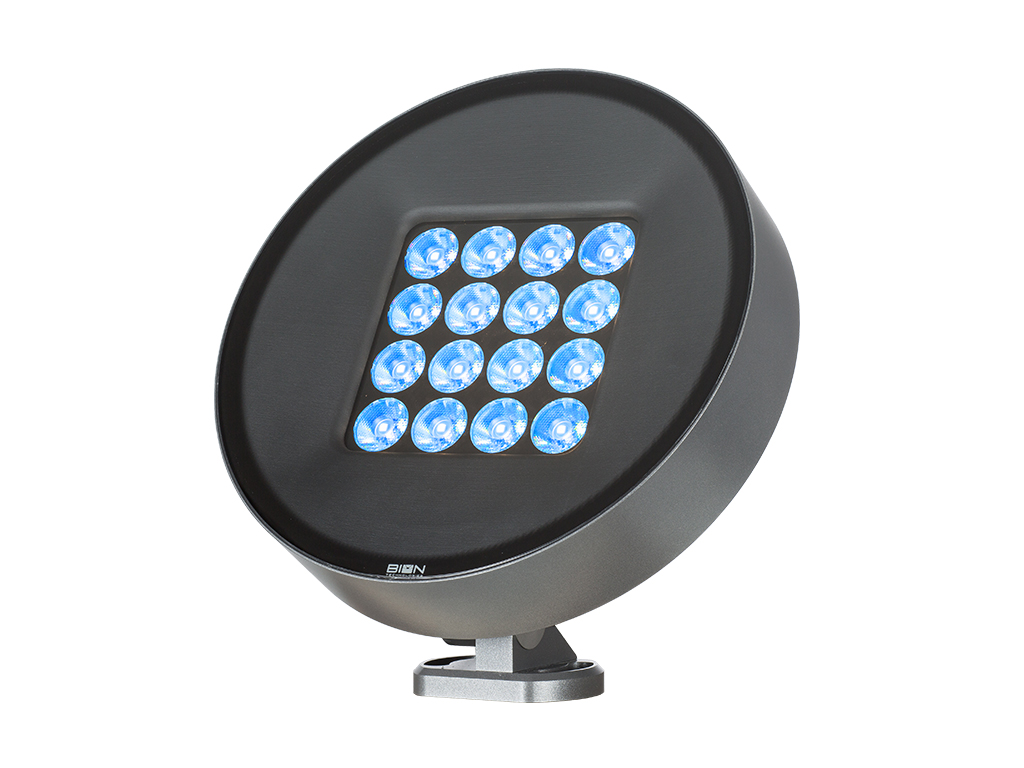

Round architectural spotlights for the highest of demands!

The product name of no other fixture speaks more in favour of the design vocabulary than the discus fixture range. Flat, circulating light fixture meets a straightforward, discreet design. The illuminated object is always at the fore – the perfect staging of architecture is the greatest compliment for the discus fixture range. Just like its design-related equivalent, firmus, the discus fixture is available in three performance classes and also offers a selected portfolio of application-oriented light distributions.



The IOT control option – a native integration of WiFi in the fixture – enables direct involvement of the digital light technology LED in digital IT‑networks and thus, a direct link to the digital world. Hence, it offers all the possibilities of the Internet Of Things.



The fixture with an aluminium housing is entirely maintainable and is therefore, perfectly suitable for long-term use in the urban landscape.

Luminaire Type
  RGBW
Color Temperature W-Channel4000 K, 6500 K
Beam Angles
Control0 - 10 V, IOT, DALI, DMX
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Housing Color(s)
DB703
DB703 powdercoated
White
White powdercoated
Black
Black powdercoated
Custom
Custom Color RAL
Ingress ProtectionIP66
Environment
Warranty24 Months
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 4000 K
  2. RGBW - 6500 K
DIMMING
  1. Non-dimmable
  2. Dimmable - 0 - 10 V
  3. Dimmable - IOT
  4. Dimmable - DALI
  5. Dimmable - DMX
BEAM ANGLE
  1. 10° x 10°
  2. 22° x 22°
  3. 34° x 34°
  4. 60° x 60°
  5. 8° x 31°
  6. 10° x 40°
  7. 12° x 60°
  8. 30° x 60°
  9. 20° x 60° (Tilt C0: 10°)
WIRING
  1. Europe
  2. North America
HOUSING COLOR
  1. DB703 powdercoated
  2. White powdercoated
  3. Black powdercoated
  4. Custom Color RAL
