funis m square 2000
pureWhite

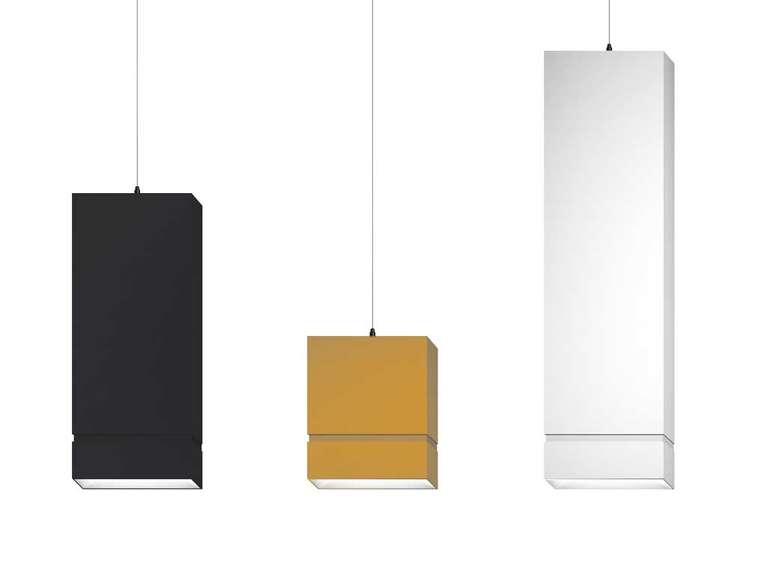

Stringent design meets high performance pendant LED lamp

Puristic design does not preclude flexible solutions. Funis can be delivered in any thinkable color with surfaces varying from high gloss to matted. Technologically, the lamp will adapt to your personal needs. Choose between a high light gain setup and a high-CRI-version of > 95. Naturally, color temperatures are freely selectable.

Dimensions

130 mm x 130 mm [W x D]
5.12 in x 5.12 in [W x D]

Standard Unit Lengths155 mm, 310 mm, 465 mm
6.11 in, 12.21 in, 18.31 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures3000 K, 4000 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Luminous Flux2380 lm
Light Source1 x LED
Color Rendering Index Ra >= 80
@ 2700 K / 3000 K Ra > 90 and Ra > 97 per Configuration available
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (TRIAC)

CE: non-dimmable, dimmable via Triac AC
ETLus: non-dimmable, dimmable via Triac AC
cETL: non-dimmable

Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 25 W
Power Factor Correction> 0,9 @ max. Load
Protection ClassII
InrushNon-dimmable:
277 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
230 V: Cold Start 45A(tD=310µs gemessen an 50% Ipeak)
110 V: Cold Start 22A(tD=310µs gemessen an 50% Ipeak)
Dimmable - TRIAC:
277 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
230 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
110 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
Operating Temperature Range-20 °C / +30 °C | -4 °F / +82 °F
Lumen Maintenance [L70]50'000 h @ 25 °C / 77 °F
LED-ClassClass 2 LED-Product
HousingAluminium
Housing Color(s)
Signal
Signal white RAL 9003
Jet
Jet black RAL 9005
Dark
Dark grey RAL 9023
Grey
Grey brown RAL 8019
Gold
Gold RAL 1036
* Others colors available upon request
LensPMMA
Ingress ProtectionIP20
Environment
Warranty24 Months
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 3000 K
  2. pureWhite - 4000 K
DIMMING
  1. Non-dimmable
  2. Dimmable - TRIAC
FIXTURE LENGTH
  1. 155 mm / 6.11 in
  2. 310 mm / 12.21 in
  3. 465 mm / 18.31 in
BEAM ANGLE
  1. 46° x 46°
  2. 66° x 66°
VOLTAGE
  1. 90 - 135 VAC 50/60 Hz
  2. 180 - 264 VAC 50/60 Hz
  3. 277 VAC 50/60 Hz
HOUSING COLOR
  1. Signal white RAL 9003
  2. Jet black RAL 9005
  3. Dark grey RAL 9023
  4. Grey brown RAL 8019
  5. Gold RAL 1036
CANOPY
  1. Monopoint
  2. Trackmount
GLOSS LEVEL
  1. Matt
  2. High Gloss Finished
COLOR RENDERING INDEX
  1. CRI 80
  2. CRI 97

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16D10D16
Non-dimmable599151830
Dimmable - TRIAC508050805080

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB10B16C10C16D10D16
Non-dimmable2447915
Dimmable - TRIAC233723372337

Load Table 277 V

Recommended maximum count of fixtures per circuit breaker.

277 VB10B16C10C16D10D16
Non-dimmable508050805080
Dimmable - TRIAC508050805080
