tellus m eco

tellus m eco
pureWhite | pureColor

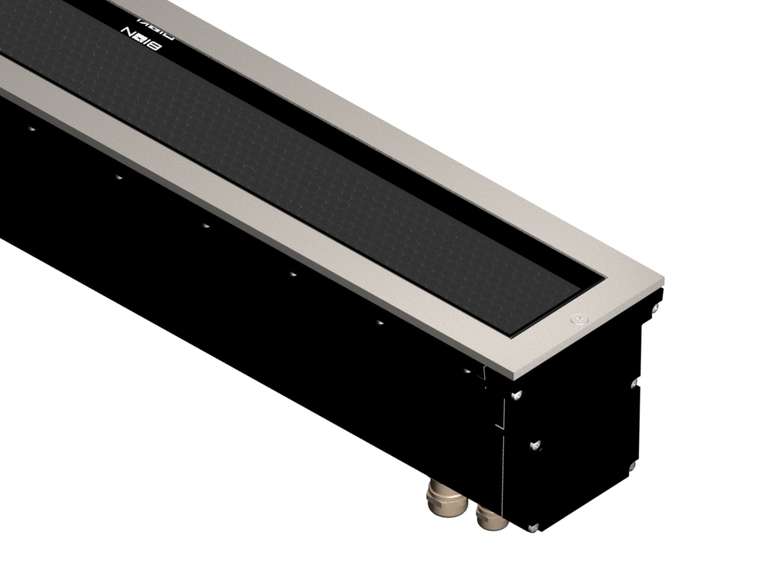

Flexible recessed floor light for architectural lighting solutions

In developing tellus m, we were guided by the challenges of a real recessed floor light, with a minimized installation depth while satisfying all technical demands. As a genuine all-in-one solution, power supply blocks plus control components have been fully integrated into the fixture. Next to its nine beam angle variations, tellus m may be relamped with various LED types, thus providing almost every possible color temperature.

Quicklinks

Dimensions

110 mm x 110 mm [W x H]
4.33 in x 4.33 in [W x H]
Standard Unit Lengths345 mm, 650 mm, 955 mm, 1260 mm
13.59 in, 25.60 in, 37.60 in, 49.61 in
Luminaire Type
  pureWhite
  pureColor
pureWhite Color Temperatures2700 K, 3000 K, 3500 K, 4000 K
* Project-specific color temperatures for pureWhite available.
pureColor LED-ColorsRed, Green, Blue, Amber
* Project-specific colors for pureColor available.
Beam Angles
Luminous Flux
345 mm (13,59 in):937 lm
650 mm (25,60 in):1874 lm
955 mm (37,60 in):2811 lm
1260 mm (49,61 in):3748 lm

pureColor red: 450 lm/ft
pureColor green: 825 lm/ft
pureColor blue: 365 lm/ft
pureColor amber: 784 lm/ft
Light Source
345 mm (13,59 in):8
650 mm (25,60 in):16
955 mm (37,60 in):24
1260 mm (49,61 in):32
Color Rendering Index Ra >= 80
AntiglareHoneycomb structure
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (DMX , IOT)
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
345 mm(13,59 in):  Max. 14 W
650 mm(25,60 in):  Max. 28 W
955 mm(37,60 in):  Max. 42 W
1260 mm(49,61 in):  Max. 56 W
Power Factor Correction0.9
Protection ClassII
Inrush@230V:
220 mm (8,67 in): COLD START 50A(twidth=210µs measured at 50% Ipeak)
345 mm (13,59 in): COLD START 50A(twidth=210µs measured at 50% Ipeak)
650 mm (25,60 in): COLD START 50A(twidth=210µs measured at 50% Ipeak)
955 mm (37,60 in): COLD START 55A(twidth=270µs measured at 50% Ipeak)
1260 mm (49,61 in): COLD START 70A(twidth=435µs measured at 50% Ipeak)

@110V:
220 mm (8,67 in): COLD START 24A(twidth=210µs measured at 50% Ipeak)
345 mm (13,59 in): COLD START 24A(twidth=210µs measured at 50% Ipeak)
650 mm (25,60 in): COLD START 24A(twidth=210µs measured at 50% Ipeak)
955 mm (37,60 in): COLD START 27A(twidth=270µs measured at 50% Ipeak)
1260 mm (49,61 in): COLD START 34A(twidth=435µs measured at 50% Ipeak)
Operating Temperature Range-20 °C / +40 °C | -4 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingExtruded aluminium profile
Housing Color(s)Black anodized
Lens

Tempered safety glass
Markerlight Anti-Slip Safety Glass: Translucency 50%
FrameStainless steel
Weight
345 mm / 13.58 in: 4,5 kg(9.92 lbs)
650 mm / 25.59 in: 7,5 kg(16.53 lbs)
955 mm / 37.60 in: 10,5 kg(23.15 lbs)
1260 mm / 49.61 in: 14 kg(30.86 lbs)
Load500 kg | 1100 lbs
Ingress ProtectionIP67
Environment
Certification

Accessories

tellus m installation box
tellus m installation box
gel-filled cable joint
gel-filled cable joint

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2700 K
  2. pureWhite - 3000 K
  3. pureWhite - 3500 K
  4. pureWhite - 4000 K
  5. pureColor - Red
  6. pureColor - Green
  7. pureColor - Blue
  8. pureColor - Amber
DIMMING
  1. Non-dimmable
  2. Dimmable - DMX
  3. Dimmable - IOT
FIXTURE LENGTH
  1. 345 mm / 13.59 in
  2. 650 mm / 25.60 in
  3. 955 mm / 37.60 in
  4. 1260 mm / 49.61 in
BEAM ANGLE
  1. 8° x 8°
  2. 10° x 10°
  3. 23° x 23°
  4. 43° x 43°
  5. 52° x 52°
  6. 8° x 31°
  7. 10° x 42°
  8. 12° x 60°
  9. 30° x 58° (Tilt C0: -14°)
  10. 30° x 11° (Tilt C0: -14°)
  11. 110° x 110° Marker
WIRING
  1. Europe
  2. North America
GLARE PROTECTION
  1. No glare protection
  2. Honeycomb louver
  3. Linear louver

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16
1260 mm (49.61 in)46711
955 mm (37.60 in)46711
650 mm (25.59 in)59915
345 mm (13.58 in)59915
