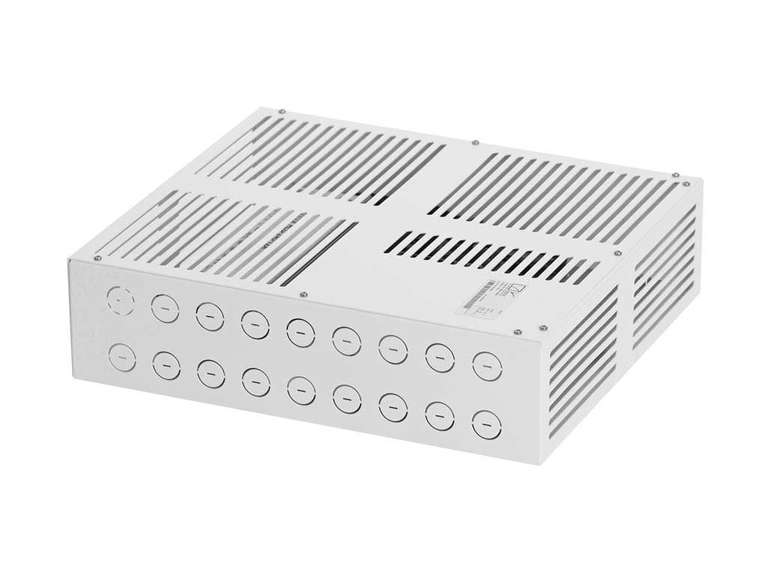

VS 300-36

The universal power supply for tantulus

Dimensions

350 mm x 320 mm x 90 mm [B x T x H]
13.78 in x 12.60 in x 3.55 in [B x T x H]

DimmingNon-dimmable | Dimmable (0 - 10 V , DALI , DMX , POT , IOT)
Input Voltage
Power Supply: Internal
Power ConsumptionMax. 350 W
Power Factor Correction> 0,94
Protection ClassI
Output Voltage 36 VDC
Inrush

COLD START 70A(t=1000 s measured at 50% I) at 230VAC; width peak Per NEMA 410
COLD START 35A(t=1000 s measured at 50% I) at 110VAC; width peak Per NEMA 410

Operating Temperature-20 °C / +40 °C | -4 °F / +104 °F
HousingSteel-sheet, powdercoated
Housing Color(s)White (RAL 9010)
Weight
5,7 kg(12.57 lbs)
Ingress ProtectionIP20
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

DIMMING
  1. Non-dimmable
  2. Dimmable - 0 - 10 V
  3. Dimmable - DALI
  4. Dimmable - DMX
  5. Dimmable - POT
  6. Dimmable - IOT
WIRING
  1. CE - Europe
  2. ETL - North America
POWER SUPPLY TYP
  1. RGBW - RGBW
  2. HP - hp pureWhite
  3. TW - tunableWhite
  4. ECO - eco pureWhite / pureColor
Max. Fixtures per Run

Europa

Max. Fixtures in m / ft per output:
  • tantulus eco pureWhite / pureColor: 12,2 m / 40 ft
  • tantulus hp pureWhite / tunableWhite: 10,7 m / 35 ft
  • tantulus xhp pureWhite / tunableWhite: 8,3 m / 27 ft
  • tantulus RGBW: 7,4 m / 24 ft
Max. Fixtures per power supply in m / ft:
  • tantulus eco pureWhite / pureColor: 29,3 m / 96 ft
  • tantulus hp pureWhite / tunableWhite: 17,7m m / 58 ft
  • tantulus xhp pureWhite / tunableWhite: 13,5 m / 44 ft
  • tantulus RGBW: 14,7 m / 48 ft


​USA / Canada

Max. Fixtures in m / ft per Output:
  • tantulus eco pureWhite / pureColor:  10,4 m / 34 ft
  • tantulus hp pureWhite / tunableWhite: 10,4 m / 34 ft
  • tantulus xhp pureWhite / tunableWhite: 8,3 m / 27 ft
  • tantulus RGBW: 5,2 m / 17 ft
Max. Fixtures per power supply in m / ft:
  • tantulus eco pureWhite / pureColor: 29,3 m / 96 ft
  • tantulus hp pureWhite / tunableWhite: 17,7m m / 58 ft
  • tantulus xhp pureWhite / tunableWhite: 13,5 m / 44 ft
  • tantulus RGBW: 14,7 m / 48 ft
Max. Total Run Length

Europa

Max. Run length in m / ft incl. 15 m / 49 ft leader cable:
  • tantulus eco pureWhite / pureColor: 27,2 m / 89 ft
  • tantulus hp pureWhite / tunableWhite: 25,7 m / 84 ft
  • tantulus xhp pureWhite / tunableWhite: 23,3 m / 76 ft
  • tantulus RGBW: 22,4 m / 73 ft


USA / Canada

Max. Run length in m / ft incl. 15 m / 49 ft leader cable:
  • tantulus eco pureWhite / pureColor: 25,1 m / 83 ft
  • tantulus hp pureWhite / tunableWhite: 25,4 m / 84 ft
  • tantulus xhp pureWhite / tunableWhite: 23,3 m / 76 ft
  • tantulus RGBW: 20,2 m / 66 ft
Inputrail mounted terminal block, 0.25 mm² - 4 mm² (22 AWG - 12 AWG)
Outputrail mounted terminal block, 0.25 - 4 mm² (22 AWG - 12 AWG)
