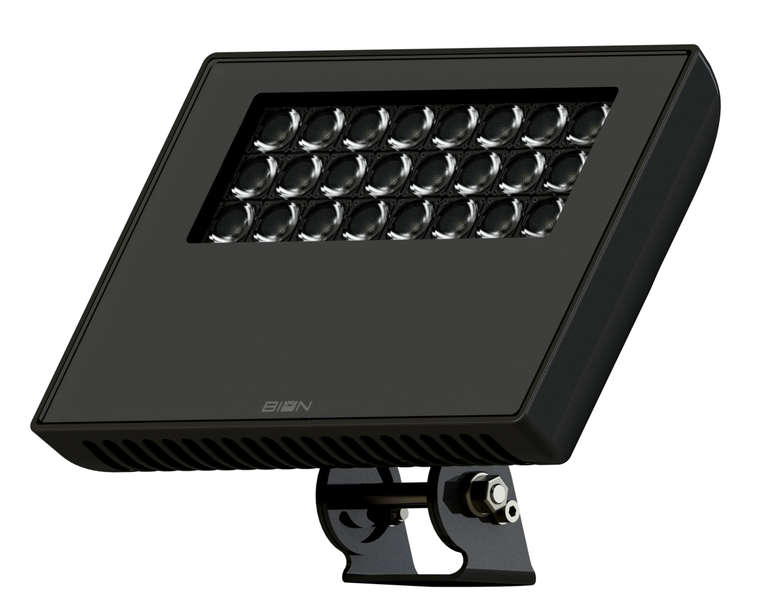

coma l
RGBW

High performance LED floodlight for sophisticated architectural scenarios

Highlighting walls of more than 20 meters height comes as no real challenge for coma I. Its various beam angles and LED adjustments make coma I the ideal solution, also for adverse environments. One real highlight is the RGBW-LED equipped model. Additional white LEDs allow a "real“ white component to be added to the RGB-color range, thus multiplying possible color nuances.

Dimensions

250 mm x 182 mm [L x D]
9.85 in x 7.17 in [L x D]

Luminaire Type
  RGBW
Color Temperature W-Channel2700 K, 3000 K, 4000 K
* Project-specific LED-colors for RGBW/RGB available.
Beam Angles
Lumen Output

RGBW: 2036 lm
Lumen output for each RGBW channel: Red: 368 lm, Green: 642 lm, Blue: 286 lm, White: 740 lm

RGB: 1641 lm

Light Source24 x LED
Color Rendering Index Ra >= 80
LED-Binning
MacAdam Ellipses Binning3
ControlDMX, IOT
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 45 W
Power Factor Correction

> 0,98 -> 115 VAC @ max. Output
> 0,95 -> 230 VAC @ max. Output
> 0,91 -> 277 VAC @ max. Output

Protection ClassI
InrushCOLD START 55A@230VAC / 27A@110VAC (twidth=265µs measured at 50% Ipeak)
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED-Product
HousingAluminium die casting
Housing Color(s)
White
White powdercoated
Black
Black powdercoated
LensSafety glass, printed
Weight
2,8 kg(6.17 lbs)
Ingress ProtectionIP65
Environment
Impact ProtectionIK08
Certification

Accessories

wall mount arm
wall mount arm

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 2700 K
  2. RGBW - 3000 K
  3. RGBW - 4000 K
DIMMING
  1. Dimmable - DMX
  2. Dimmable - IOT
BEAM ANGLE
  1. 7° x 7°
  2. 13° x 13°
  3. 30° x 30°
  4. 66° x 66°
  5. 90° x 114°
  6. 8° x 31°
  7. 11° x 45°
  8. 12° x 60°
  9. 14° x 100°
  10. 30° x 60°
WIRING
  1. CE - Europe
  2. ETL - North America
HOUSING COLOR
  1. WH - White powdercoated
  2. BL - Black powdercoated

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB16C16D16B32C32
coma l916321832

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB16C16D16B32C32
coma l4816916
