linea m hp
pureWhite | pureColor

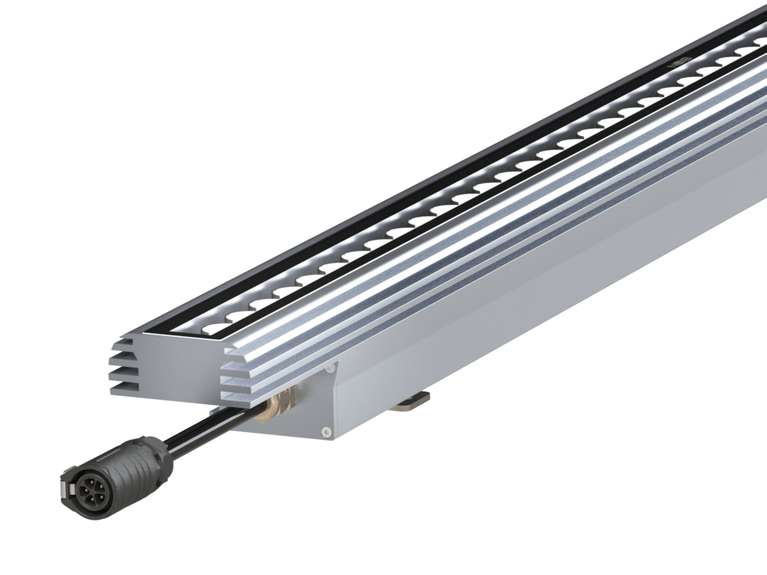

The perfect fixture for large area outdoor grazing light applications

An unmatched variety of beam angles, its color temperature stability and homogeneity, combined with an intelligent power management concept make the linea m fixture family the ideal solution for all outdoor applications. Integral power locks make external equipment or power supply superfluous, keeping both planning and installation phases simple and short.

Dimensions

75 mm x 71 mm [W x H]
2.95 in x 2.80 in [W x H]

Standard Unit Lengths629 mm, 934 mm, 1239 mm
24.77 in, 36.78 in, 48.78 in
Luminaire Type
  pureWhite
  pureColor
pureWhite Color Temperatures2200 K, 2700 K, 3000 K, 4000 K
pureColor LED-ColorsRed, Green, Blue, Amber
Beam Angles
Lumen Output
629 mm (24,77 in):2628 lm
934 mm (36,78 in):3942 lm
1239 mm (48,78 in):5256 lm

pureColor red-> 608 lm/ft
pureColor green-> 1114 lm/ft
pureColor blue-> 493 lm/ft
pureColor amber-> 700 lm/ft

Light Source
629 mm (24,77 in):24
934 mm (36,78 in):36
1239 mm (48,78 in):48
Color Rendering Index Ra >= 80
Antiglareoptional:
  • Hex louver (internal)
  • Linear louver (internal)
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (DMX , 0 - 10 V , DALI)
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
629 mm(24,77 in):  Max. 42 W
934 mm(36,78 in):  Max. 63 W
1239 mm(48,78 in):  Max. 84 W

pureColor red -> Max. 15 W/ft
pureColor green -> Max. 21 W/ft
pureColor blue -> Max. 21 W/ft
pureColor amber -> Max. 21 W/ft

Power Factor Correction

629 mm, 934 mm (24.77 in, 36.78 in):
>= 0,97 @ 110 VAC (max. Output)
>= 0,95 @ 230 VAC (max. Output)
>= 0,92 @ 277 VAC (max. Output)

1239 mm (48.78 in):
>= 0,98 @ 110 VAC (max. Output)
>= 0,93 @ 230 VAC (max. Output)
>= 0,90 @ 277 VAC (max. Output)

Protection ClassI
Inrush

629 mm, 934 mm (24.77 in, 36.78 in):
55 A 270 µs 50% peak @ 230 VAC

1239 mm (48.78 in):
75 A @ 110 / 240 VAC

Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED-Product
HousingAluminium
Housing Color(s)
Aluminium
Aluminium anodized (Standard)
Black
Black anodized
LensTempered safety glass, extra white
Weight
617 mm / 24.30 in: 5 kg(11.02 lbs)
922 mm / 36.30 in: 7 kg(15.43 lbs)
1228 mm / 48.35 in: 9 kg(19.84 lbs)
Ingress ProtectionIP66
Environment
Impact ProtectionIK07
Certification

Accessories

linea m leader cable
linea m leader cable
linea m connection cable
linea m connection cable

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2200 K
  2. pureWhite - 2700 K
  3. pureWhite - 3000 K
  4. pureWhite - 4000 K
  5. pureColor - Red
  6. pureColor - Green
  7. pureColor - Blue
  8. pureColor - Amber
DIMMING
  1. Non-dimmable
  2. Dimmable - DMX
  3. Dimmable - 0 - 10 V
  4. Dimmable - DALI
FIXTURE LENGTH
  1. 629 mm / 24.77 in
  2. 934 mm / 36.78 in
  3. 1239 mm / 48.78 in
BEAM ANGLE
  1. 8° x 8°
  2. 10° x 10°
  3. 23° x 23°
  4. 43° x 43°
  5. 8° x 31°
  6. 10° x 42°
  7. 12° x 60°
  8. 14° x 100°
  9. 30° x 60°
WIRING
  1. CE - Europe
  2. ETL - North America
HOUSING COLOR
  1. AA - Aluminium anodized (Standard)
  2. BA - Black anodized
POSITION LEADER CABLE
  1. L - Left
  2. R - Right
LEADERCABLE LENGTH
  1. ETE - End to end - wiring
  2. 003 - + 30 cm (ca. 1 ft)
  3. 006 - + 60 cm (ca. 2 ft)
  4. 009 - + 90 cm (ca. 3 ft)
  5. 012 - + 1,2 m (ca. 4 ft)
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Hex louver (internal)
  3. LL0 - Linear louver (internal)
MOUNTING OPTION
  1. MX00 - Mounting bracket Fix 0°
  2. MX20 - Mounting bracket Fix 20°
  3. MSH - Mounting Set Hinge

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16
629 mm (24.77 in)-8-14
934 mm (36.78 in)-8-14
1239 mm (48.78 in)2447

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB10B16C10C16
629 mm (24.77 in)-8-14
934 mm (36.78 in)-8-14
1239 mm (48.78 in)2447
