coma l

coma l
tunableWhite

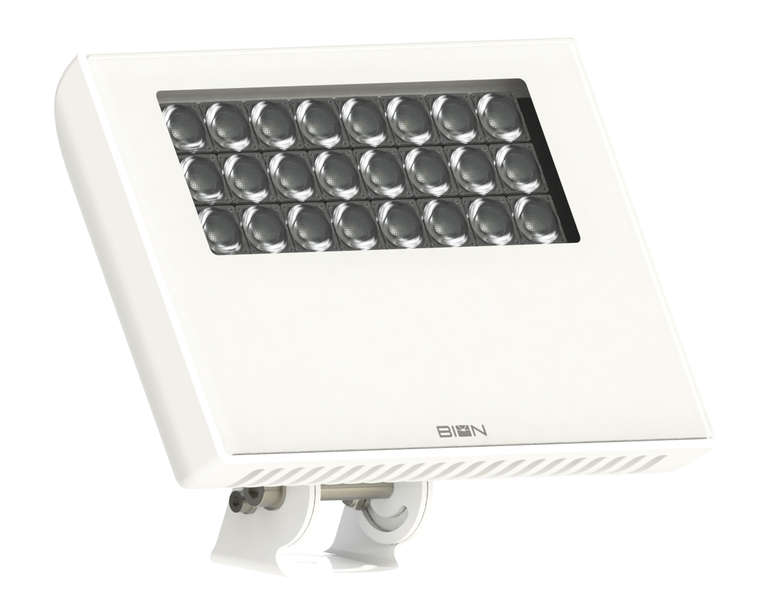

Color-temperature dynamic LED floodlight for architectural scenarios

A one-fixture solution for different white light scenarios, coma I tunableWhite offers a standard color temperature range from 3000 K to 6000 K, dynamically tunable via a control unit. Thus an architectural facade scenario can be adjusted according to the year‘s seasons.

Pictures

Quicklinks

Dimensions

250 mm x 182 mm [L x D]
9.85 in x 7.17 in [L x D]
Luminaire Type
  tunableWhite
Color Temperature tunableWhite3000 K - 6000 K
* Project-specific color temperature ranges for tunableWhite available.
Beam Angles
Lumen Output2828 lm
Light Source24 x LED
LED-Binning
MacAdam Ellipses Binning3
ControlDMX
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 45 W
Power Factor Correction

> 0,98 -> 115 VAC @ max. Output
> 0,95 -> 230 VAC @ max. Output
> 0,91 -> 277 VAC @ max. Output
Protection ClassI
InrushCOLD START 55A@230VAC / 27A@110VAC (twidth=265µs measured at 50% Ipeak)
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED-Product
HousingAluminium die casting
Housing Color(s)
White
White powdercoated
Black
Black powdercoated
LensSafety glass, printed
Weight
2,8 kg(6.17 lbs)
Ingress ProtectionIP65
Environment
Impact ProtectionIK08
Certification

Accessories

wall mount arm
wall mount arm

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. tunableWhite - 3000 K - 6000 K
DIMMING
  1. Dimmable - DMX
BEAM ANGLE
  1. 7° x 7°
  2. 13° x 13°
  3. 30° x 30°
  4. 66° x 66°
  5. 90° x 114°
  6. 8° x 31°
  7. 11° x 45°
  8. 12° x 60°
  9. 14° x 100°
  10. 30° x 60°
WIRING
  1. CE - Europe
  2. ETL - North America
HOUSING COLOR
  1. WH - White powdercoated
  2. BL - Black powdercoated

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB16C16D16B32C32
coma l916321832

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB16C16D16B32C32
coma l4816916
