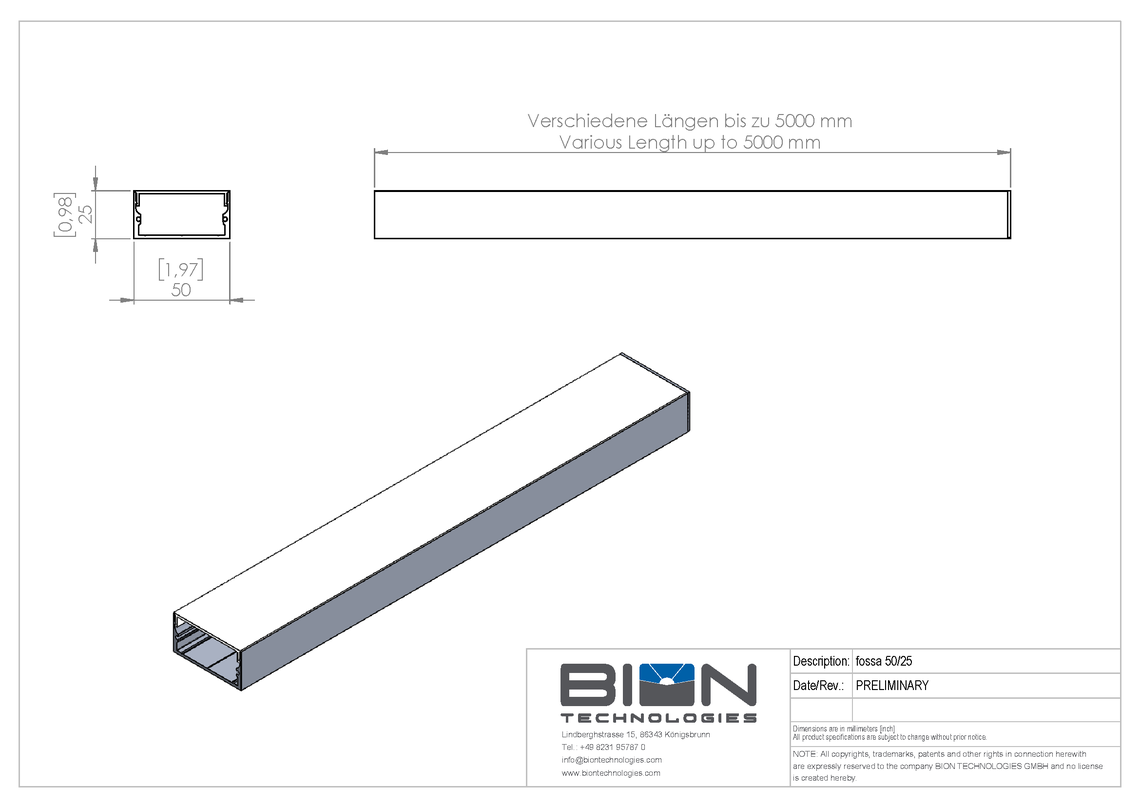

| Dimensions | 50 mm x 25 mm [W x H] | ||||||
| Luminaire Type |  pureWhite | ||||||
| pureWhite Color Temperatures | 2000 K, 2200 K, 2700 K, 3000 K, 4000 K * Project-specific color temperatures for pureWhite available. | ||||||
| Beam Angles | |||||||
| Lumen Output | max. 900 lm/m | ||||||
| Color Rendering Index | Ra >= 82 | ||||||
| R9 | 20 | ||||||
| LED-Binning |  | ||||||
| MacAdam Ellipses Binning | 2 | ||||||
| Dimming | External | ||||||
| Input Voltage | Power Supply: External | ||||||
| Protection Class | II | ||||||
| Storage Temperature | -20 °C / +40 °C | -4 °F / +104 °F | ||||||
| Operating Temperature | -20 °C / +40 °C | -4 °F / +104 °F | ||||||
| Start-up Temperature | -20 °C / +40 °C | -4 °F / +104 °F | ||||||
| Lumen Maintenance [L70] | 65’000 h @ 25 °C (77 °F) | 40‘000 h @ 50 °C (122 °F) | ||||||
| LED-Class | Class 2 LED Product | ||||||
| Housing | Aluminium | ||||||
| Housing Color(s) |    | ||||||
| Lens | Material: PMMA
| ||||||
| Ingress Protection | IP20 | ||||||
| Environment |  | ||||||
| Certification |    |
