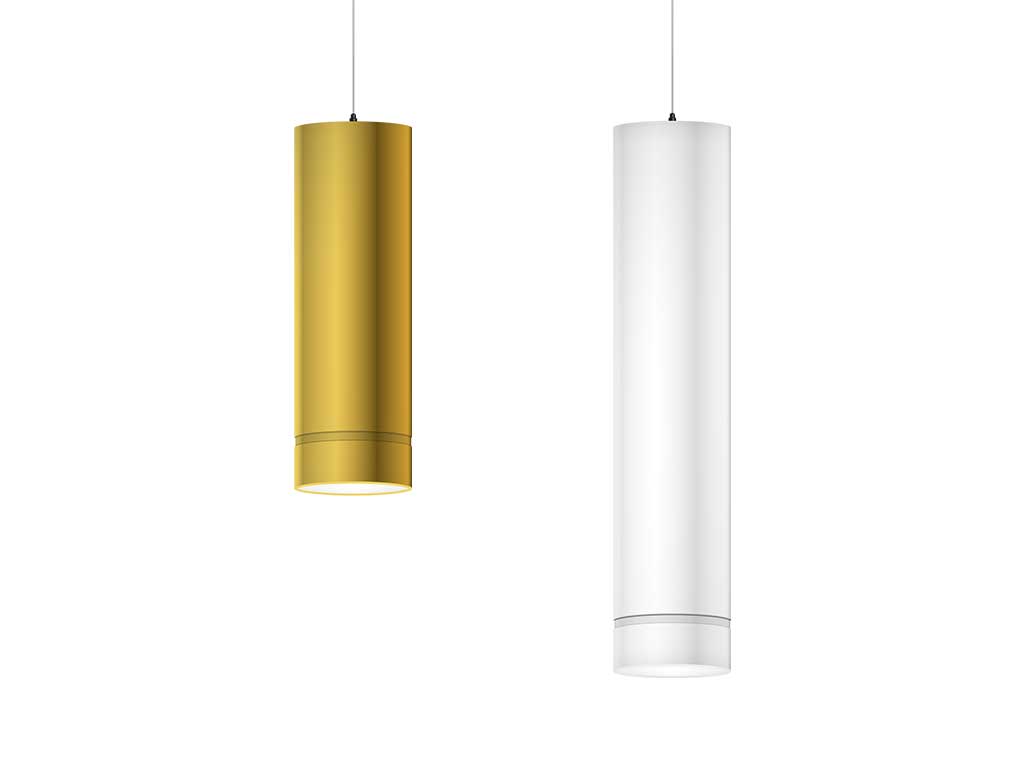

funis m round 2000
pureWhite

Stringent design meets powerful circular pendant LED lamp

Just like its straight-lined counterpart, funis m round comes in two performance categories with the 2000 lm version offering solutions for utility and path guidance lighting. As a new concept idea, the lamp lends itself for the design of a customized path guidance lighting system by using specific light colors. Notwithstanding its performance and design, funis m round 2000 dispenses with active cooling.

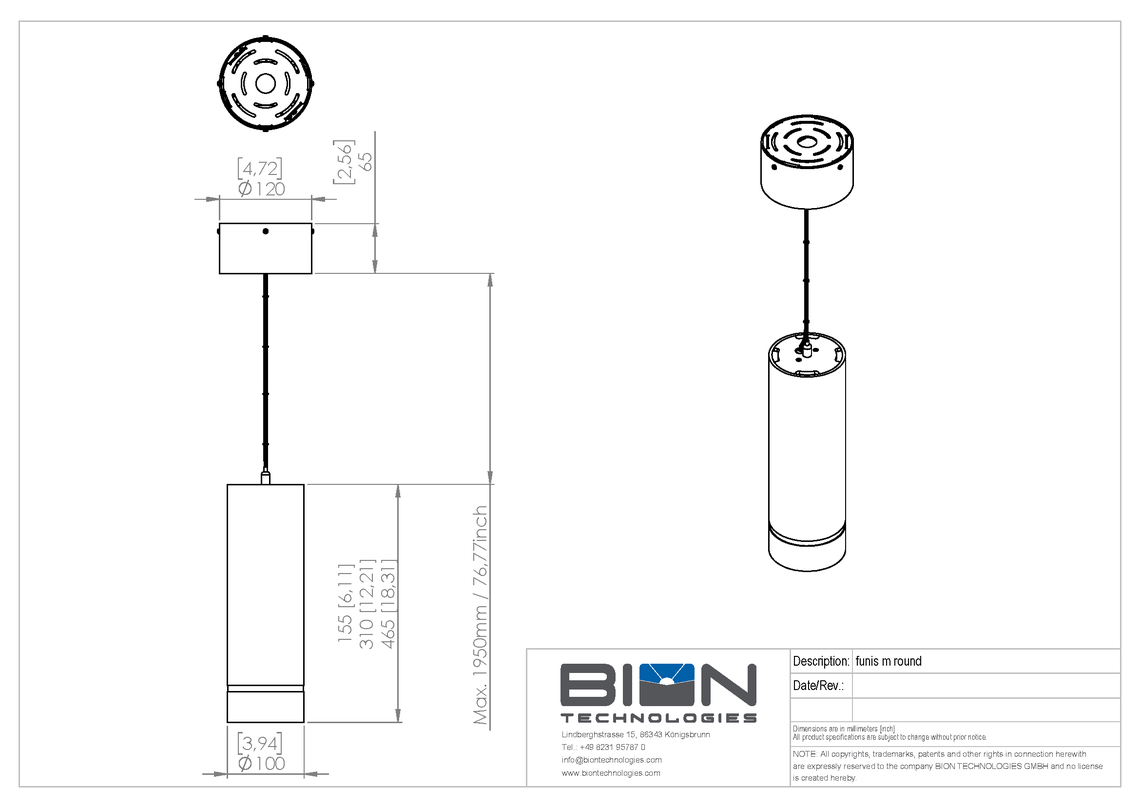

DimensionsDiameter: 100 mm / 3.94 in
Standard Unit Lengths310 mm, 465 mm
12.21 in, 18.31 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures3000 K, 4000 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Luminous Flux2380 lm
Light Source1 x LED
Color Rendering Index Ra >= 80
@ 2700 K / 3000 K Ra > 90 and Ra > 97 per Configuration available
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (TRIAC)

CE: non-dimmable, dimmable via Triac AC
ETLus: non-dimmable, dimmable via Triac AC
cETL: non-dimmable

Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 25 W
Protection ClassII
InrushNon-dimmable:
277 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
230 V: Cold Start 45A(tD=310µs gemessen an 50% Ipeak)
110 V: Cold Start 22A(tD=310µs gemessen an 50% Ipeak)
Dimmable - TRIAC:
277 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
230 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
110 V: Cold Start 10A(tD=20µs gemessen an 50% Ipeak)
Storage Temperature-20 °C / +30 °C | -4 °F / +82 °F
Operating Temperature-20 °C / +30 °C | -4 °F / +82 °F
Start-up Temperature-20 °C / +30 °C | -4 °F / +82 °F
Lumen Maintenance [L70]50'000 h @ 25 °C / 77 °F
LED-ClassClass 2 LED-Product
HousingAluminium
Housing Color(s)
Signal
Signal white RAL 9003
Jet
Jet black RAL 9005
Dark
Dark grey RAL 9023
Grey
Grey brown RAL 8019
Gold
Gold RAL 1036
* Others colors available upon request
LensPMMA
Ingress ProtectionIP20
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 3000 K
  2. pureWhite - 4000 K
DIMMING
  1. Non-dimmable
  2. Dimmable - TRIAC
FIXTURE LENGTH
  1. 310 mm / 12.21 in
  2. 465 mm / 18.31 in
BEAM ANGLE
  1. 18° x 18°
  2. 26° x 26°
  3. 35° x 35°
VOLTAGE
  1. 110V - 90 - 135 VAC 50/60 Hz
  2. 230V - 180 - 264 VAC 50/60 Hz
  3. 277V - 277 VAC 50/60 Hz
HOUSING COLOR
  1. WH - Signal white RAL 9003
  2. JB - Jet black RAL 9005
  3. PG - Dark grey RAL 9023
  4. GB - Grey brown RAL 8019
  5. GO - Gold RAL 1036
CANOPY
  1. MP - Monopoint
  2. TR - Trackmount
GLOSS LEVEL
  1. MA - Matt
  2. HG - High Gloss Finished
COLOR RENDERING INDEX
  1. RA80 - CRI 80
  2. RA97 - CRI 97

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16D10D16
Non-dimmable599151830
Dimmable - TRIAC508050805080

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB10B16C10C16D10D16
Non-dimmable2447915
Dimmable - TRIAC233723372337

Load Table 277 V

Recommended maximum count of fixtures per circuit breaker.

277 VB10B16C10C16D10D16
Non-dimmable508050805080
Dimmable - TRIAC508050805080
