funis m square 1000
pureWhite

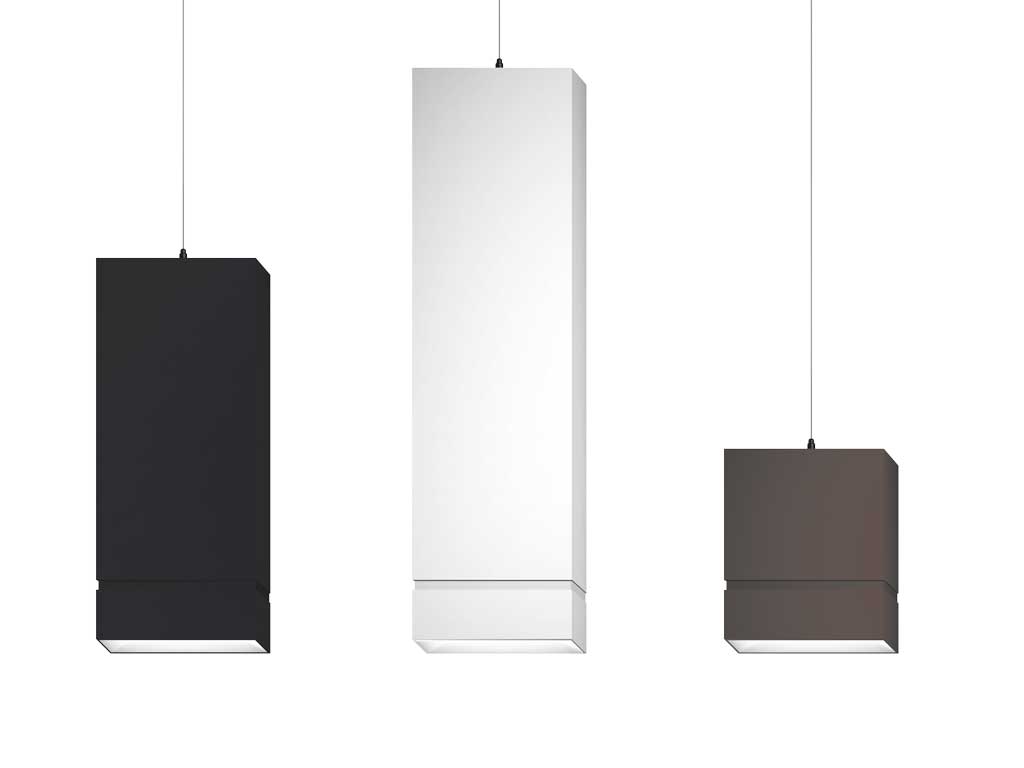

Stringent design meets LED-Equipped pendant lamp

The funis m square can be traced back to a single pendant lamp, now developed into a full-size fixture line. Exiting from a lamp height of 155 mm, two new lengths – 310 mm and 465 mm are now available. Along with the known 2000 lm variant, a 1000 lm lamp provides perfect illumination solutions for light zone concepts like in restaurants.

Dimensions

130 mm x 130 mm [W x D]
5.12 in x 5.12 in [W x D]

Standard Unit Lengths155 mm, 310 mm, 465 mm
6.11 in, 12.21 in, 18.31 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures3000 K, 4000 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Luminous Flux1310 lm
Light Source1 x LED
Color Rendering Index Ra >= 80
@ 2700 K / 3000 K Ra > 90 and Ra > 97 per Configuration available
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (TRIAC)

CE: non-dimmable, dimmable via Triac AC
ETLus: non-dimmable, dimmable via Triac AC
cETL: non-dimmable

Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power ConsumptionMax. 12 W
Power Factor Correction> 0,9 @ max. Load
Protection ClassII
InrushNon-dimmable:
277 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
230 V: Cold Start 70A(tD=120µs gemessen an 50% Ipeak)
110 V: Cold Start 34A(tD=120µs gemessen an 50% Ipeak)
Dimmable - TRIAC:
277 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
230 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
110 V: Cold Start 10A(tD=90µs gemessen an 50% Ipeak)
Storage Temperature-20 °C / +30 °C | -4 °F / +82 °F
Operating Temperature-20 °C / +30 °C | -4 °F / +82 °F
Start-up Temperature-20 °C / +30 °C | -4 °F / +82 °F
Lumen Maintenance [L70]50'000 h @ 25 °C / 77 °F
LED-ClassClass 2 LED-Product
HousingAluminium
Housing Color(s)
Signal
Signal white RAL 9003
Jet
Jet black RAL 9005
Dark
Dark grey RAL 9023
Grey
Grey brown RAL 8019
Gold
Gold RAL 1036
* Others colors available upon request
LensPMMA
Ingress ProtectionIP20
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 3000 K
  2. pureWhite - 4000 K
DIMMING
  1. Non-dimmable
  2. Dimmable - TRIAC
FIXTURE LENGTH
  1. 155 mm / 6.11 in
  2. 310 mm / 12.21 in
  3. 465 mm / 18.31 in
BEAM ANGLE
  1. 46° x 46°
  2. 66° x 66°
VOLTAGE
  1. 110V - 90 - 135 VAC 50/60 Hz
  2. 230V - 180 - 264 VAC 50/60 Hz
  3. 277V - 277 VAC 50/60 Hz
HOUSING COLOR
  1. WH - Signal white RAL 9003
  2. JB - Jet black RAL 9005
  3. PG - Dark grey RAL 9023
  4. GB - Grey brown RAL 8019
  5. GO - Gold RAL 1036
CANOPY
  1. MP - Monopoint
  2. TR - Trackmount
GLOSS LEVEL
  1. MA - Matt
  2. HG - High Gloss Finished
COLOR RENDERING INDEX
  1. RA80 - CRI 80
  2. RA97 - CRI 97

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16D10D16
Non-dimmable111718293759
Dimmable - TRIAC801288012880128

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB10B16C10C16D10D16
Non-dimmable589141828
Dimmable - TRIAC36583658368

Load Table 277 V

Recommended maximum count of fixtures per circuit breaker.

277 VB10B16C10C16D10D10
Non-dimmable801288012880128
Dimmable - TRIAC801288012880128
