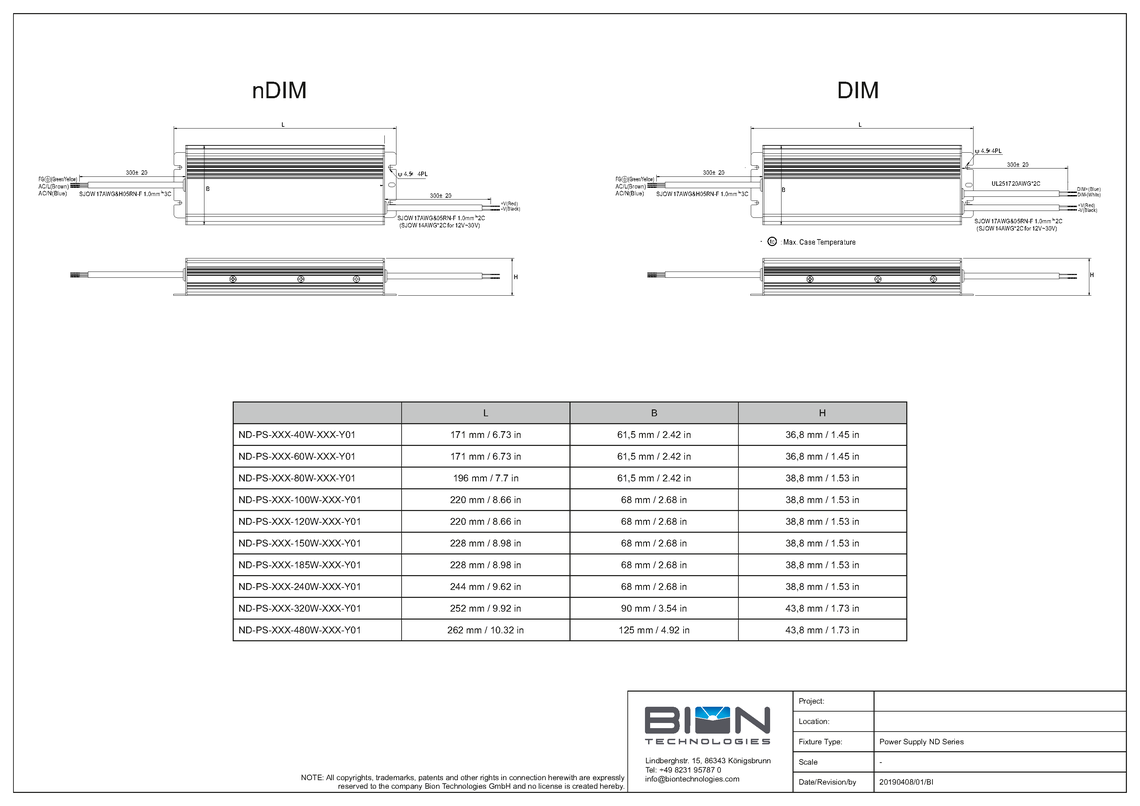

DimensionsL x B x H in technical drawing
Control0 - 10 V
Input Voltage
100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Inrush@230V:
ND 40  Cold Start 50A(tD=210µs measured at 50% Ipeak)
ND 60  Cold Start 55A(tD=265µs measured at 50% Ipeak)
ND 80  Cold Start 70A(tD=485µs measured at 50% Ipeak)
ND 100  Cold Start 60A(tD=415µs measured at 50% Ipeak)
ND 120  Cold Start 60A(tD=375µs measured at 50% Ipeak)
ND 150  Cold Start 65A(tD=425µs measured at 50% Ipeak)
ND 185  Cold Start 65A(tD=445µs measured at 50% Ipeak)
ND 240  Cold Start 75A(tD=570µs measured at 50% Ipeak)
@110V:
ND 40  Cold Start 24A(tD=210µs measured at 50% Ipeak)
ND 60  Cold Start 27A(tD=265µs measured at 50% Ipeak)
ND 80  Cold Start 34A(tD=485µs measured at 50% Ipeak)
ND 100  Cold Start 29A(tD=415µs measured at 50% Ipeak)
ND 120  Cold Start 29A(tD=375µs measured at 50% Ipeak)
ND 150  Cold Start 31A(tD=425µs measured at 50% Ipeak)
ND 185  Cold Start 31A(tD=445µs measured at 50% Ipeak)
ND 240  Cold Start 36A(tD=570µs measured at 50% Ipeak)
Housingmetal housing painted
Housing Color(s)silver
Weightmax. 1,32 kg (2.9 lbs) (ND 240-36)
Ingress ProtectionIP67
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

DIMMING
  1. Non-dimmable
  2. Dimmable - 0 - 10 V
POWER SUPPLY TYP
  1. 40W - 40 Watt
  2. 60W - 60 Watt
  3. 80W - 80 Watt
  4. 100W - 100 Watt
  5. 120W - 120 Watt
  6. 150W - 150 Watt
  7. 185W - 185 Watt
  8. 240W - 240 Watt
  9. 320W - 320 Watt
  10. 480W - 480 Watt
ENVIRONMENT
  1. 24V - 24 Volt
  2. 36V - 36 Volt
