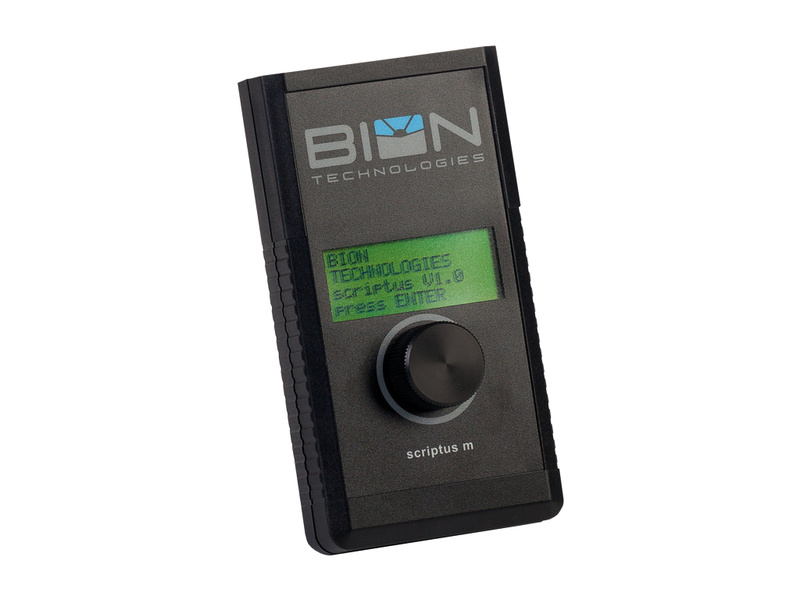

scriptus m
Addressing simply easy
The DMX-Addressing device scriptus m is for X-LED and universal for all fixtures of BION TECHNOLOGIES. Two different cable adapters allow a quick and easy use with external or integrated power supplies. The intuitive operation and functionality makes it easy to do a simple addressing process of your fixtures or testing existing installations.

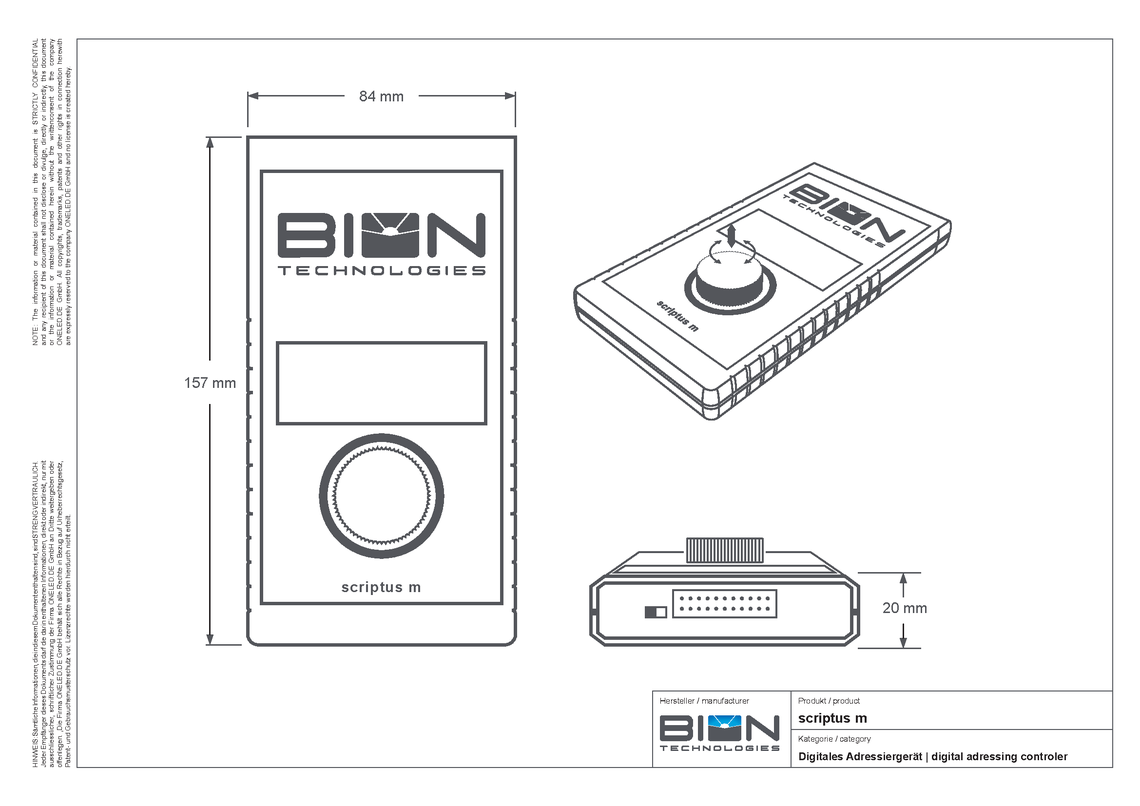

| Dimensions | 157 mm x 84 mm x 20 mm |
| Control | DMX |
| Eingangsspannung | 9 - 36 VDC |
| Power Consumption | Max. 2 W |
| Protection Class | III |
| Operating Temperature | 0 °C - +50 °C | 32 °F - 122 °F |
| Housing | Plastic casing, black |
| Weight | ca. 250 g |
| Ingress Protection | IP20 |
| Environment |  |
| Certification |  |
