tantulus hp indoor

tantulus hp indoor
pureWhite

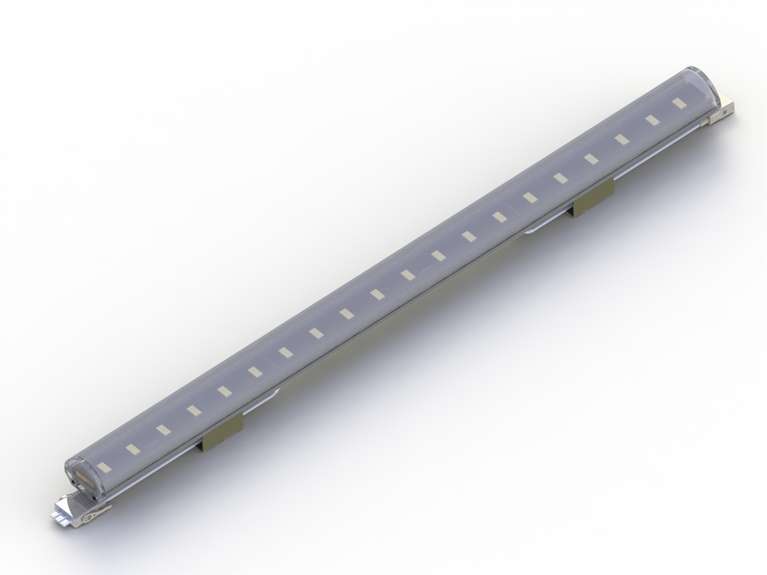

High-Power cove lighting fixture for exquisite demands

With its lumen flow of up to 3060 lm, tantulus 3 hp offers both decorative cove lighting solutions and grazing light applications. Beam angles of 120° x 120° and 30° x 120° provide appropriate light distribution curves for these applications. Furthermore, tantulus 3 hp pureWhite excels with its 2 MacAdams LED-Assortment of the highest homogeneity.

Pictures

Quicklinks

Dimensions

23 mm x 19 mm [W x H]
0.91 in x 0.75 in [W x H]
Standard Unit Lengths105 mm (only end fitting), 207 mm (only end fitting), 310 mm, 410 mm, 512 mm, 615 mm, 715 mm, 817 mm, 920 mm, 1020 mm, 1122 mm, 1225 mm, 1325 mm, 1427 mm, 1530 mm, 1630 mm, 1732 mm, 1835 mm
4.14 in (only end fitting), 8.15 in (only end fitting), 12.21 in, 16.15 in, 20.16 in, 24.22 in, 28.15 in, 32.17 in, 36.23 in, 40.16 in, 44.18 in, 48.23 in, 52.17 in, 56.19 in, 60.24 in, 64.18 in, 68.19 in, 72.25 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures2000 K, 2200 K, 2500 K, 2700 K, 3000 K, 3500 K, 4000 K, 4500 K, 6500 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Lumen Output
105 mm (4,14 in):192 lm
207 mm (8,15 in):385 lm
310 mm (12,21 in):583 lm
410 mm (16,15 in):775 lm
512 mm (20,16 in):968 lm
615 mm (24,22 in):1166 lm
715 mm (28,15 in):1358 lm
817 mm (32,17 in):1551 lm
920 mm (36,23 in):1749 lm
1020 mm (40,16 in):1941 lm
1122 mm (44,18 in):2134 lm
1225 mm (48,23 in):2332 lm
1325 mm (52,17 in):2524 lm
1427 mm (56,19 in):2717 lm
1530 mm (60,24 in):2915 lm
1630 mm (64,18 in):3107 lm
1732 mm (68,19 in):3300 lm
1835 mm (72,25 in):3498 lm
Light Source
105 mm (4,14 in):7
207 mm (8,15 in):13
310 mm (12,21 in):20
410 mm (16,15 in):27
512 mm (20,16 in):33
615 mm (24,22 in):40
715 mm (28,15 in):47
817 mm (32,17 in):53
920 mm (36,23 in):60
1020 mm (40,16 in):67
1122 mm (44,18 in):73
1225 mm (48,23 in):80
1325 mm (52,17 in):87
1427 mm (56,19 in):93
1530 mm (60,24 in):100
1630 mm (64,18 in):107
1732 mm (68,19 in):113
1835 mm (72,25 in):120
Color Rendering Index Ra >= 80
R920
LED-Binning
MacAdam Ellipses Binning2
DimmingExternal
Input Voltage
Power Supply: External | 36 VDC
Power Consumption
105 mm(4,14 in):  Max. 5 W
207 mm(8,15 in):  Max. 5 W
310 mm(12,21 in):  Max. 5 W
410 mm(16,15 in):  Max. 10 W
512 mm(20,16 in):  Max. 10 W
615 mm(24,22 in):  Max. 10 W
715 mm(28,15 in):  Max. 15 W
817 mm(32,17 in):  Max. 15 W
920 mm(36,23 in):  Max. 15 W
1020 mm(40,16 in):  Max. 20 W
1122 mm(44,18 in):  Max. 20 W
1225 mm(48,23 in):  Max. 20 W
1325 mm(52,17 in):  Max. 25 W
1427 mm(56,19 in):  Max. 25 W
1530 mm(60,24 in):  Max. 25 W
1630 mm(64,18 in):  Max. 30 W
1732 mm(68,19 in):  Max. 30 W
1835 mm(72,25 in):  Max. 30 W
Protection ClassII
Storage Temperature-20 °C / +40 °C | -4 °F / +104 °F
Operating Temperature-20 °C / +40 °C | -4 °F / +104 °F
Start-up Temperature-20 °C / +40 °C | -4 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 50 °C (122 °F)
LED-ClassClass 2 LED Product
HousingAluminium
Housing Color(s)
Aluminium
Aluminium anodized (Standard)
Lens

Material: PMMA
Translucency

clear 90%
frost  87%
white 70%
Ingress ProtectionIP20
Environment
Certification

Accessories

VS 300-36
VS 300-36
VS 600-36
VS 600-36
tantulus leader cable
tantulus leader cable
tantulus connection cable
tantulus connection cable
tantulus 3 Bracket 0°
tantulus 3 Bracket 0°
tantulus 3 Bracket 15°
tantulus 3 Bracket 15°
tantulus 3 Bracket 30°
tantulus 3 Bracket 30°
tantulus 3 Bracket 45°
tantulus 3 Bracket 45°
tantulus 3 Bracket 60°
tantulus 3 Bracket 60°
tantulus 3 Positioning Hinge
tantulus 3 Positioning Hinge

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2000 K
  2. pureWhite - 2200 K
  3. pureWhite - 2500 K
  4. pureWhite - 2700 K
  5. pureWhite - 3000 K
  6. pureWhite - 3500 K
  7. pureWhite - 4000 K
  8. pureWhite - 4500 K
  9. pureWhite - 6500 K
FIXTURE LENGTH
  1. 105 mm / 4.14 in (only end fitting)
  2. 207 mm / 8.15 in (only end fitting)
  3. 310 mm / 12.21 in
  4. 410 mm / 16.15 in
  5. 512 mm / 20.16 in
  6. 615 mm / 24.22 in
  7. 715 mm / 28.15 in
  8. 817 mm / 32.17 in
  9. 920 mm / 36.23 in
  10. 1020 mm / 40.16 in
  11. 1122 mm / 44.18 in
  12. 1225 mm / 48.23 in
  13. 1325 mm / 52.17 in
  14. 1427 mm / 56.19 in
  15. 1530 mm / 60.24 in
  16. 1630 mm / 64.18 in
  17. 1732 mm / 68.19 in
  18. 1835 mm / 72.25 in
BEAM ANGLE
  1. 30° x 120° frost
  2. 60° x 120° frost
  3. 90° x 120° frost
  4. 120° x 120° clear
  5. 120° x 120° frost
  6. 120° x 120° white
  7. 186° x 110° white
MOUNTING OPTION
  1. K0 - Bracket Set 0°
  2. K15 - Bracket Set 15°
  3. K30 - Bracket Set 30°
  4. K45 - Bracket Set 45°
  5. K60 - Bracket Set 60°
  6. KADJ - Positioning Hinge

Fixed Angle:
Bracket count: 2 <= 1225 mm (48.23 in) > 3
HKadj: Bracket count: 2 for all lengths

Max. Fixtures per Feed

CE max. 10,67 m (35 ft)
cETLus Class 2 max. 6,10 m (20 ft)*
*can be extended by using the VS power supply series
Max. Total Run Length

CE max. 25,67 m (84.2 ft)
cETLus Class 2 max.  21,11 m (69.2 ft)*
mit 15 m (49.2 ft) Anschlusskabel

*can be extended by using the VS power supply series
