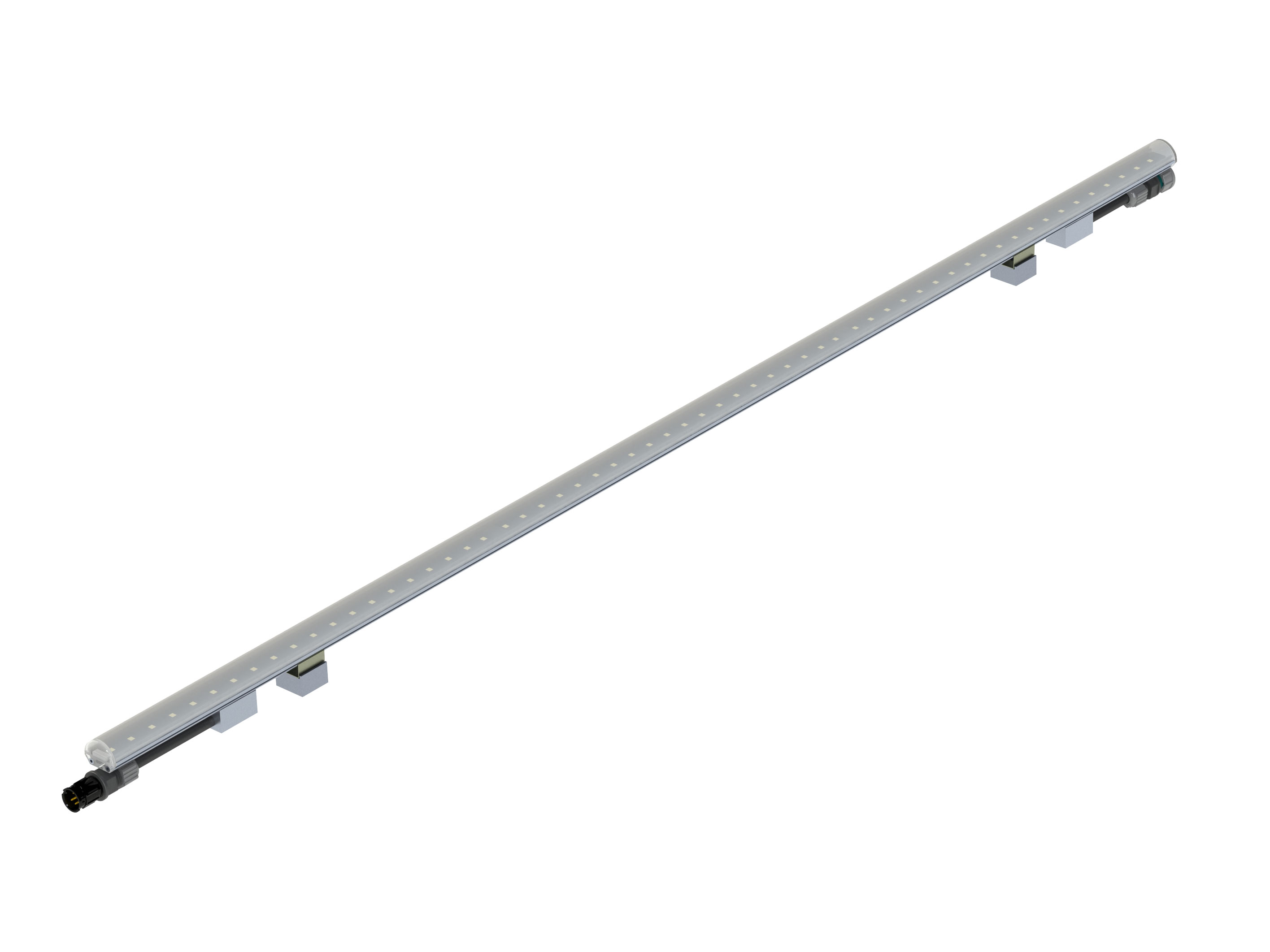

tantulus outdoor

tantulus outdoor
RGBW

The all-round tool for light coves

You need your cove lights colored as well as genuine white – no RGB-White? Then tantulus 3 RGBW will be your solution, combining RGB-TriColor-LEDs for color with real White LEDs. LED selection by two MacAdams-ellipses provides unique light homogeneity. As the icing on the cake, you can choose from different White LED color temperatures. All in all, tantulus eco2 provides a maximum flexible though easily mountable cove light solution.

Quicklinks

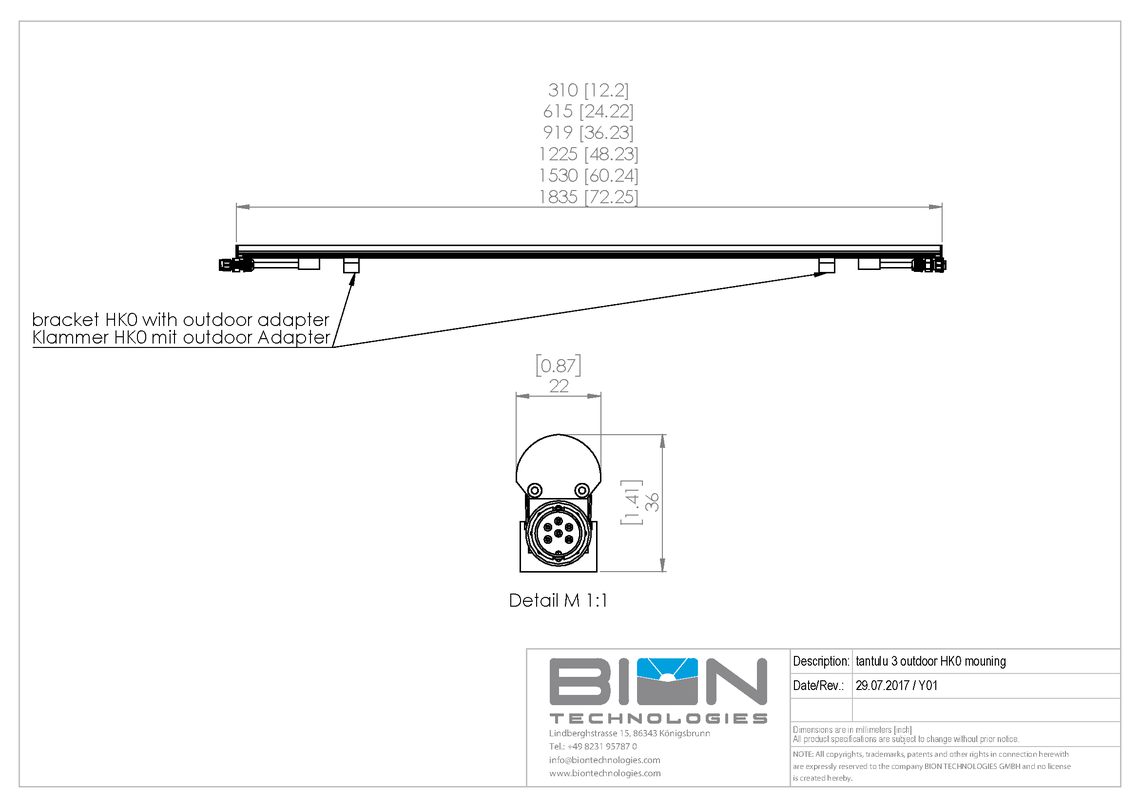

Dimensions

22 mm x 36 mm [W x H] with bracket / hinge
0.87 in x 1.42 in [W x H]  with bracket / hinge
Standard Unit Lengths105 mm (only end fitting), 207 mm (only end fitting), 310 mm, 410 mm, 512 mm, 615 mm, 715 mm, 817 mm, 920 mm, 1020 mm, 1122 mm, 1225 mm, 1325 mm, 1427 mm, 1530 mm, 1630 mm, 1732 mm, 1835 mm
4.14 in (only end fitting), 8.15 in (only end fitting), 12.21 in, 16.15 in, 20.16 in, 24.22 in, 28.15 in, 32.17 in, 36.23 in, 40.16 in, 44.18 in, 48.23 in, 52.17 in, 56.19 in, 60.24 in, 64.18 in, 68.19 in, 72.25 in
Luminaire Type
  RGBW
Color Temperature W-Channel2600 K, 3300 K, 4000 K
* Project-specific LED-colors for RGBW/RGB available.
Beam Angles
Lumen Output
105 mm (4,14 in):74 lm
207 mm (8,15 in):147 lm
310 mm (12,21 in):223 lm
410 mm (16,15 in):297 lm
512 mm (20,16 in):370 lm
615 mm (24,22 in):446 lm
715 mm (28,15 in):520 lm
817 mm (32,17 in):593 lm
920 mm (36,23 in):669 lm
1020 mm (40,16 in):743 lm
1122 mm (44,18 in):816 lm
1225 mm (48,23 in):892 lm
1325 mm (52,17 in):966 lm
1427 mm (56,19 in):1039 lm
1530 mm (60,24 in):1115 lm
1630 mm (64,18 in):1189 lm
1732 mm (68,19 in):1262 lm
1835 mm (72,25 in):1338 lm
Light Source
105 mm (4,14 in):7
207 mm (8,15 in):13
310 mm (12,21 in):20
410 mm (16,15 in):27
512 mm (20,16 in):33
615 mm (24,22 in):40
715 mm (28,15 in):47
817 mm (32,17 in):53
920 mm (36,23 in):60
1020 mm (40,16 in):67
1122 mm (44,18 in):73
1225 mm (48,23 in):80
1325 mm (52,17 in):87
1427 mm (56,19 in):93
1530 mm (60,24 in):100
1630 mm (64,18 in):107
1732 mm (68,19 in):113
1835 mm (72,25 in):120
Color Rendering Index Ra >= 82
R920
LED-Binning
MacAdam Ellipses Binning3
Input Voltage Power Supply: External
Power Consumption
105 mm(4,14 in):  Max. 6 W
207 mm(8,15 in):  Max. 6 W
310 mm(12,21 in):  Max. 6 W
410 mm(16,15 in):  Max. 12 W
512 mm(20,16 in):  Max. 12 W
615 mm(24,22 in):  Max. 12 W
715 mm(28,15 in):  Max. 18 W
817 mm(32,17 in):  Max. 18 W
920 mm(36,23 in):  Max. 18 W
1020 mm(40,16 in):  Max. 24 W
1122 mm(44,18 in):  Max. 24 W
1225 mm(48,23 in):  Max. 24 W
1325 mm(52,17 in):  Max. 30 W
1427 mm(56,19 in):  Max. 30 W
1530 mm(60,24 in):  Max. 30 W
1630 mm(64,18 in):  Max. 36 W
1732 mm(68,19 in):  Max. 36 W
1835 mm(72,25 in):  Max. 36 W
Protection ClassII
Storage Temperature-20 °C / +40 °C | -4 °F / +104 °F
Operating Temperature-20 °C / +40 °C | -4 °F / +104 °F
Start-up Temperature-20 °C / +40 °C | -4 °F / +104 °F
Lumen Maintenance [L70]40’000 h @ 25 °C (77 °F) | 25‘000 h @ 50 °C (122 °F)
LED-ClassClass 2 LED Product
HousingAluminium
Housing Color(s)
Aluminium
Aluminium anodized (Standard)
Lens

Material: PMMA
Translucency

frost  89%
white 70%
Ingress ProtectionIP65
Environment
Certification

Accessories

VS 300-36
VS 300-36
VS 600-36
VS 600-36
tantulus 3 Bracket 15°
tantulus 3 Bracket 15°
tantulus 3 Bracket 30°
tantulus 3 Bracket 30°
tantulus 3 Bracket 45°
tantulus 3 Bracket 45°
tantulus 3 Bracket 60°
tantulus 3 Bracket 60°
tantulus 3 Positioning Hinge
tantulus 3 Positioning Hinge

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 2600 K
  2. RGBW - 3300 K
  3. RGBW - 4000 K
FIXTURE LENGTH
  1. 105 mm / 4.14 in (only end fitting)
  2. 207 mm / 8.15 in (only end fitting)
  3. 310 mm / 12.21 in
  4. 410 mm / 16.15 in
  5. 512 mm / 20.16 in
  6. 615 mm / 24.22 in
  7. 715 mm / 28.15 in
  8. 817 mm / 32.17 in
  9. 920 mm / 36.23 in
  10. 1020 mm / 40.16 in
  11. 1122 mm / 44.18 in
  12. 1225 mm / 48.23 in
  13. 1325 mm / 52.17 in
  14. 1427 mm / 56.19 in
  15. 1530 mm / 60.24 in
  16. 1630 mm / 64.18 in
  17. 1732 mm / 68.19 in
  18. 1835 mm / 72.25 in
BEAM ANGLE
  1. 30° x 120° frost
  2. 120° x 120° white
  3. 120° x 120° frost
MOUNTING OPTION
  1. K0 - Bracket Set 0°
  2. K15 - Bracket Set 15°
  3. K30 - Bracket Set 30°
  4. K45 - Bracket Set 45°
  5. K60 - Bracket Set 60°
  6. KADJ - Positioning Hinge

Fixed Angle:
Bracket count: 2 <= 1225 mm (48.23 in) > 3
HKadj: Bracket count: 2 for all lengths

Max. Fixtures per Feedmax. 7,32 m (24 ft)
Max. Total Run Length

max. 22,32 m (73.2 ft)
including 15 m (49.2 ft) leader cable
