tellus m hpq

tellus m hpq
pureWhite

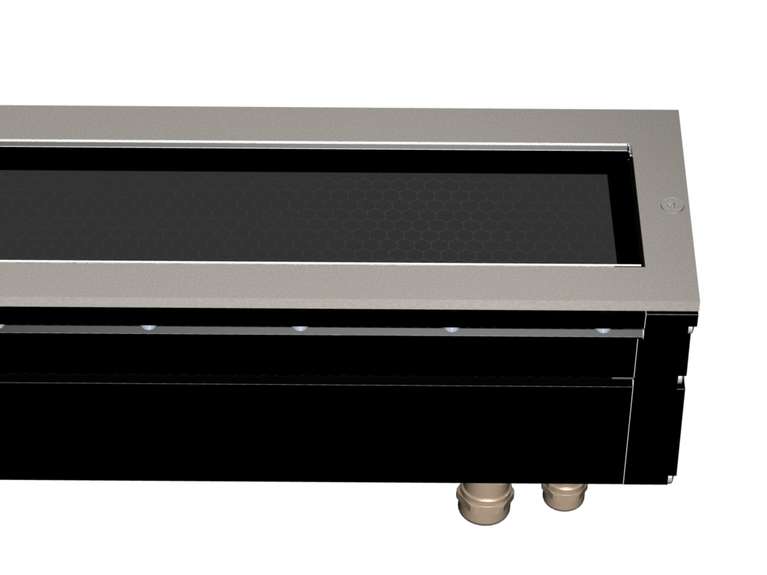

The recessed floor light for maximum-output architectural illumination

With a light power of up to 8800 lm, tellus m hp defines a new class of floor light fixtures. Its Color Rendering Index mostly exceeds 80, at times even a stunning 95 and more. Going by these performance values, it sticks out by its minimalistic dimensions. Fixture lengths from 345 mm to 1260 mm can be provided.

Quicklinks

Dimensions

110 mm x 110 mm [W x H]
4.33 in x 4.33 in [W x H]
Standard Unit Lengths345 mm, 650 mm, 955 mm, 1260 mm
13.59 in, 25.60 in, 37.60 in, 49.61 in
Luminaire Type
  pureWhite
pureWhite Color Temperatures2700 K, 3000 K, 3500 K, 4000 K
* Project-specific color temperatures for pureWhite available.
Beam Angles
Lumen Output
345 mm (13,59 in):2200 lm
650 mm (25,60 in):4400 lm
955 mm (37,60 in):6600 lm
1260 mm (49,61 in):8800 lm
Light Source
345 mm (13,59 in):4
650 mm (25,60 in):8
955 mm (37,60 in):12
1260 mm (49,61 in):16
Color Rendering Index

Warm White, Neutral White: Ra > 80
Cool White: Ra > 70
AntiglareHoneycomb
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
345 mm(13,59 in):  Max. 25 W
650 mm(25,60 in):  Max. 50 W
955 mm(37,60 in):  Max. 75 W
1260 mm(49,61 in):  Max. 100 W
Protection ClassI
Inrush@230V:
345 mm (13,59 in): COLD START 60A(twidth=540µs measured at 50% Ipeak)
650 mm (25,60 in): COLD START 60A(twidth=540µs measured at 50% Ipeak)
955 mm (37,60 in): COLD START 120A(twidth=540µs measured at 50% Ipeak)
1260 mm (49,61 in): COLD START 120A(twidth=540µs measured at 50% Ipeak)

@110V:
345 mm (13,59 in): COLD START 29A(twidth=540µs measured at 50% Ipeak)
650 mm (25,60 in): COLD START 29A(twidth=540µs measured at 50% Ipeak)
955 mm (37,60 in): COLD START 58A(twidth=540µs measured at 50% Ipeak)
1260 mm (49,61 in): COLD START 58A(twidth=540µs measured at 50% Ipeak)
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingExtruded aluminium profile
Housing Color(s)Black anodized
LensTempered safety glass
FrameStainless steel
Weight
220 mm / 8,67 in: 4 kg(8.82 lbs)-
345 mm / 13.58 in: 5 kg(11.02 lbs)-
650 mm / 25.59 in: 8 kg(17.64 lbs)-
955 mm / 37.60 in: 11 kg(24.25 lbs)-
1260 mm / 49.61 in: 14,5 kg(31.97 lbs)-
Load500 kg | 1100 lbs
Ingress ProtectionIP67
Environment
Impact ProtectionIK09
Certification

Accessories

tellus m installation box
tellus m installation box
Gel-filled cable joint
Gel-filled cable joint

Produktdaten

Photometrische Daten

sonstige Downloads

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2700 K
  2. pureWhite - 3000 K
  3. pureWhite - 3500 K
  4. pureWhite - 4000 K
DIMMING
  1. Non-dimmable
FIXTURE LENGTH
  1. 345 mm / 13.59 in
  2. 650 mm / 25.60 in
  3. 955 mm / 37.60 in
  4. 1260 mm / 49.61 in
BEAM ANGLE
  1. 10° x 10°
  2. 22° x 22°
  3. 34° x 34°
  4. 60° x 60°
  5. 8° x 31°
  6. 10° x 40°
  7. 12° x 60°
  8. 12° x 90°
  9. 30° x 60°
  10. 30° x 58° (Tilt C0: -14°)
  11. 30° x 11° (Tilt C0: -14°)
WIRING
  1. CE - Europe
  2. ETL - North America
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Honeycomb louver
  3. LL17 - Linear louver 17°
  4. LL00 - Linear louver 0°
  5. CGC - customized glare control

Use LL17 only with beam angle www or wwn

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16D10D16
345 mm (13.59 in)2336712
650 mm (25.60 in)2336712
955 mm (37.60 in)111336
1260 mm (49.61 in)111336

Load Table 110 V

Recommended maximum count of fixtures per circuit breaker.

110 VB10B16C10C16D10D16
345 mm (13.59 in)111336
650 mm (25.60 in)111336
955 mm (37.60 in)111113
1260 mm (49.61 in)111113
