tellus point xmp
tunableWhite

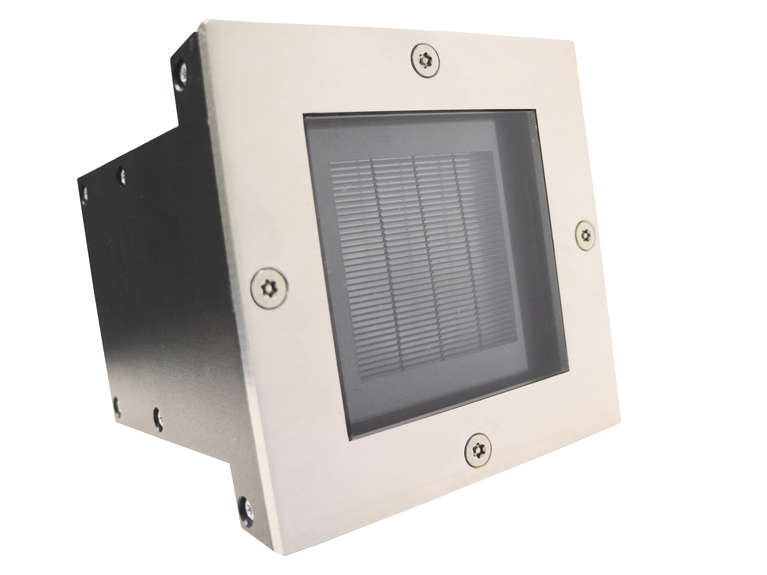

The recessed floor light for minimal space architectural illumination

With a  high light output at minimal space, tellus xs defines a new class of floor light fixtures. Its Color Rendering Index mostly exceeds 80, at times even a stunning 95 and more, provided by various beam shaping options.

Dimensions

110 mm x 110 mm x 107 mm [L x W x H]
4.33 in x 4.33 in x 4.21 in [L x W x H]

Standard Unit Lengths110 mm (XS), 220 mm (S), 268 mm (M)
4.34 in (XS), 8.67 in (S), 10.56 in (M)
Luminaire Type
  tunableWhite
Color Temperature tunableWhite3000 K - 6000 K
Beam Angles
Luminous Flux
110 mm (4,34 in):550 lm
220 mm (8,67 in):1100 lm
268 mm (10,56 in):1650 lm
Without glare protection
Light Source
110 mm (4,34 in):4
220 mm (8,67 in):8
268 mm (10,56 in):12
AntiglareHoneycomb, linear louver
LED-Binning
MacAdam Ellipses Binning2
ControlDMX, DALI, IOT
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
110 mm(4,34 in):  Max. 7 W
220 mm(8,67 in):  Max. 14 W
268 mm(10,56 in):  Max. 21 W
Protection ClassI
InrushCold Start 70A@230VAC / 34A@110VAC (tDauer=120µs gemessen an 50% Ipeak)
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingExtruded aluminium profile
Housing Color(s)Black anodized
LensTempered safety glass
FrameStainless steel
Weight1,3 kg (2.9 lbs)
Load500 kg | 1100 lbs
Ingress ProtectionIP67
Environment
Impact ProtectionIK09
Certification

Accessories

tellus m installation box
tellus m installation box
Gel-filled cable joint
Gel-filled cable joint

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. tunableWhite - 3000 K - 6000 K
DIMMING
  1. Dimmable - DMX
  2. Dimmable - DALI
  3. Dimmable - IOT
FIXTURE LENGTH
  1. 110 mm / 4.34 in (XS)
  2. 220 mm / 8.67 in (S)
  3. 268 mm / 10.56 in (M)
BEAM ANGLE
  1. 7° x 7°
  2. 13° x 13°
  3. 30° x 30°
  4. 66° x 66°
  5. 90° x 114°
  6. 8° x 31°
  7. 11° x 45°
  8. 12° x 60°
  9. 12° x 90°
  10. 30° x 58° (Tilt C0: -14°)
  11. 30° x 14° (Tilt C0: -14°)
WIRING
  1. CE - Europe
  2. ETL - North America
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Honeycomb louver
  3. LL17 - Linear louver 17°
  4. LL00 - Linear louver 0°
  5. CGC - customized glare control
LEADERCABLE LENGTH
  1. 1M - 1 m (3.3 ft)
  2. 3M - 3 m (10 ft)
  3. 6M - 6 m (19.7 ft)
  4. 9M - 9 m (29.5 ft)
  5. 15M - 15 m (49.2 ft)

Load Table 230 V

Recommended maximum count of fixtures per circuit breaker.

230 VB10B16C10C16
110 mm (4.34 in)-17-29
220 mm (8.67 in)----
268 mm (10.56 in)----
