tellus spot
RGBWquad

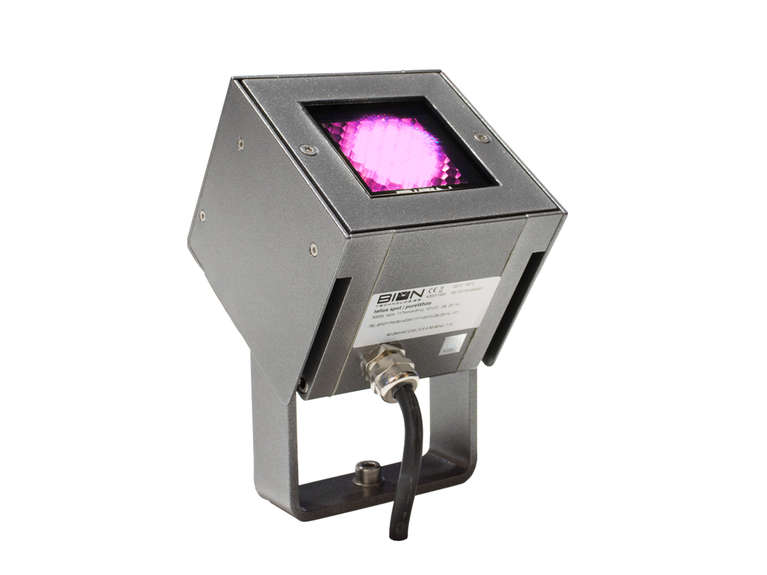

The surface-mounted fixture tellus spot xs and its next larger equivalent, the tellus spot s stand out as a result of their minimalist, straightforward design and are consistent with the existing tellus surface linear fixture range. Due to its construction, the fixture can be used in the urban area in close proximity to people in order to highlight details such as pillars or works of art.

The different glare protection variants enable the free and flexible positioning of the fixture without actually having an impact on the observer close by. It can be used almost everywhere thanks to its numerous beam angles ranging from narrow spot to wide flood, which makes it the perfect, must-have tool for each architect, lighting designer or town planner. No external ballasts or power supply units are required because the power supply technology is integrated into the fixture, which simplifies the positioning and installation of the tellus spot xs and s. Its smooth aluminium housing with seamlessly installed glass is extremely robust and easy to clean.

Dimensions

117 mm x 115 mm x 100 mm [L x W x H]
4.61 in x 4.53 in x 3,94 in [L x W x H]

Standard Unit Lengths117 mm (XS), 227 mm (S), 275 mm (M)
4.61 in (XS), 8.94 in (S), 10.83 in (M)
Luminaire Type
  RGBWquad
Color Temperature W-Channel4000 K, 6500 K
Beam Angles
Luminous Flux
117 mm (4,61 in):311 lm
227 mm (8,94 in):622 lm
275 mm (10,83 in):933 lm
Light Source
117 mm (4,61 in):1
227 mm (8,94 in):2
275 mm (10,83 in):3
Color Rendering Index Ra >= 80
AntiglareHoneycomb
LED-Binning
ControlDMX, IOT
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
117 mm(4,61 in):  Max. 6 W
227 mm(8,94 in):  Max. 12 W
275 mm(10,83 in):  Max. 18 W
Power Factor Correction

> 0,98 -> 115 VAC @ max. Output
> 0,95 -> 230 VAC @ max. Output
> 0,91 -> 277 VAC @ max. Output

Protection ClassII
Operating Temperature Range-20 °C / +40 °C | -4 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingExtruded aluminium profile
Housing Color(s)
DB703
DB703 powdercoated
White
White powdercoated
Black
Black powdercoated
Custom
Custom Color RAL
LensTempered safety glass
FrameAluminium
Weight
117 mm (4.61 in): 3 kg(6.61 lbs)
227 mm (8.94 in): 5 kg(11.02 lbs)
Ingress ProtectionIP67
Environment
Warranty24 Months
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 4000 K
  2. RGBW - 6500 K
DIMMING
  1. Dimmable - DMX
  2. Dimmable - IOT
FIXTURE LENGTH
  1. 117 mm / 4.61 in (XS)
  2. 227 mm / 8.94 in (S)
  3. 275 mm / 10.83 in (M)
BEAM ANGLE
  1. 10° x 10°
  2. 22° x 22°
  3. 34° x 34°
  4. 60° x 60°
  5. 8° x 31°
  6. 10° x 40°
  7. 12° x 60°
  8. 30° x 60°
  9. 20° x 60° (Tilt C0: 10°)
WIRING
  1. Europe
  2. North America
HOUSING COLOR
  1. DB703 powdercoated
  2. White powdercoated
  3. Black powdercoated
  4. Custom Color RAL
POSITION LEADER CABLE
  1. side feed
  2. back feed
GLARE PROTECTION
  1. No glare protection
  2. Honeycomb louver
  3. Linear louver
