tellus surface hpq

tellus surface hpq
RGBWquad

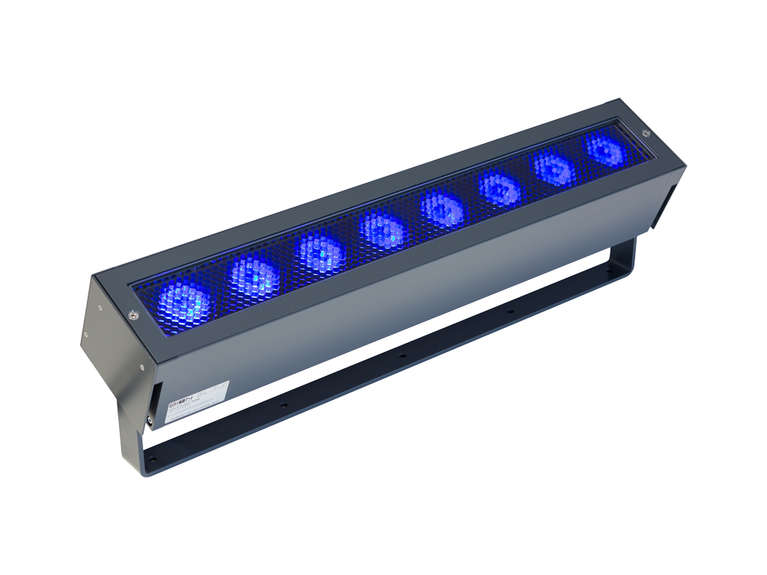

The tellus m surface is fixture with an ultra-clean design; a great combination of floodlight and linear fixture, with an astonishing lumen output. The perfect tool for lighting up high rises or other large scale applications.

Pictures

Quicklinks

Dimensions

115 mm x 100 mm [W x H]
4.53 in x 3.94 in [W x H]
Standard Unit Lengths352 mm, 657 mm, 962 mm, 1267 mm
13.86 in, 25.87 in, 37.88 in, 49.89 in
Luminaire Type
  RGBWquad
Color Temperature W-Channel4000 K, 6500 K
Beam Angles
Lumen Output
352 mm (13,86 in):1244 lm
657 mm (25,87 in):2488 lm
962 mm (37,88 in):3732 lm
1267 mm (49,89 in):4976 lm
Light Source
352 mm (13,86 in):4
657 mm (25,87 in):8
962 mm (37,88 in):12
1267 mm (49,89 in):16
Color Rendering Index Ra >= 80
AntiglareHoneycomb
ControlDMX, IOT
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
352 mm(13,86 in):  Max. 30 W
657 mm(25,87 in):  Max. 60 W
962 mm(37,88 in):  Max. 90 W
1267 mm(49,89 in):  Max. 120 W
Power Factor Correction

> 0,98 -> 115 VAC @ max. Output
> 0,95 -> 230 VAC @ max. Output
> 0,91 -> 277 VAC @ max. Output
Protection ClassII
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingExtruded aluminium profile
Housing Color(s)
DB703
DB703 powdercoated
White
White powdercoated
Black
Black powdercoated
Custom
Custom Color RAL
LensTempered safety glass
FrameAluminium
Weight
352 mm (13.86 in): 6 kg(13.23 lbs)
657 mm (25.87 in): 9 kg(19.84 lbs)
962 mm (37.88 in): 12 kg(26.46 lbs)
1267 mm (49.89 in): 15 kg(33.07 lbs)
Ingress ProtectionIP67
Environment
Impact ProtectionIK09
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 4000 K
  2. RGBW - 6500 K
DIMMING
  1. Dimmable - DMX
  2. Dimmable - IOT
FIXTURE LENGTH
  1. 352 mm / 13.86 in
  2. 657 mm / 25.87 in
  3. 962 mm / 37.88 in
  4. 1267 mm / 49.89 in
BEAM ANGLE
  1. 10° x 10°
  2. 22° x 22°
  3. 34° x 34°
  4. 60° x 60°
  5. 8° x 31°
  6. 10° x 40°
  7. 12° x 60°
  8. 14° x 100°
  9. 30° x 60°
  10. 30° x 58° (Tilt C0: -14°)
  11. 30° x 11° (Tilt C0: -14°)
WIRING
  1. CE - Europe
  2. ETL - North America
HOUSING COLOR
  1. DB - DB703 powdercoated
  2. WH - White powdercoated
  3. BL - Black powdercoated
  4. RAL____ - Custom Color RAL
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Honeycomb louver
  3. LL00 - Linear louver 0°
  4. CGC - customized glare control

Use LL17 only with beam angle www or wwn

POSITION LEADER CABLE
  1. ZS - side feed
  2. ZR - back feed
