tellus surface xhp
RGBW | RGBA

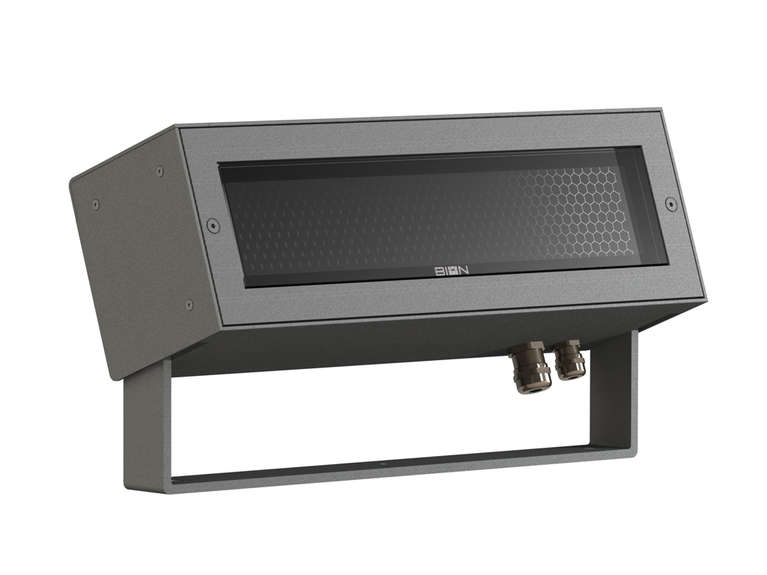

The tellus m surface is fixture with an ultra-clean design; a great combination of floodlight and linear fixture, with an astonishing lumen output of 2200 lm / ft. The perfect tool for lighting up high rises or other large scale applications.

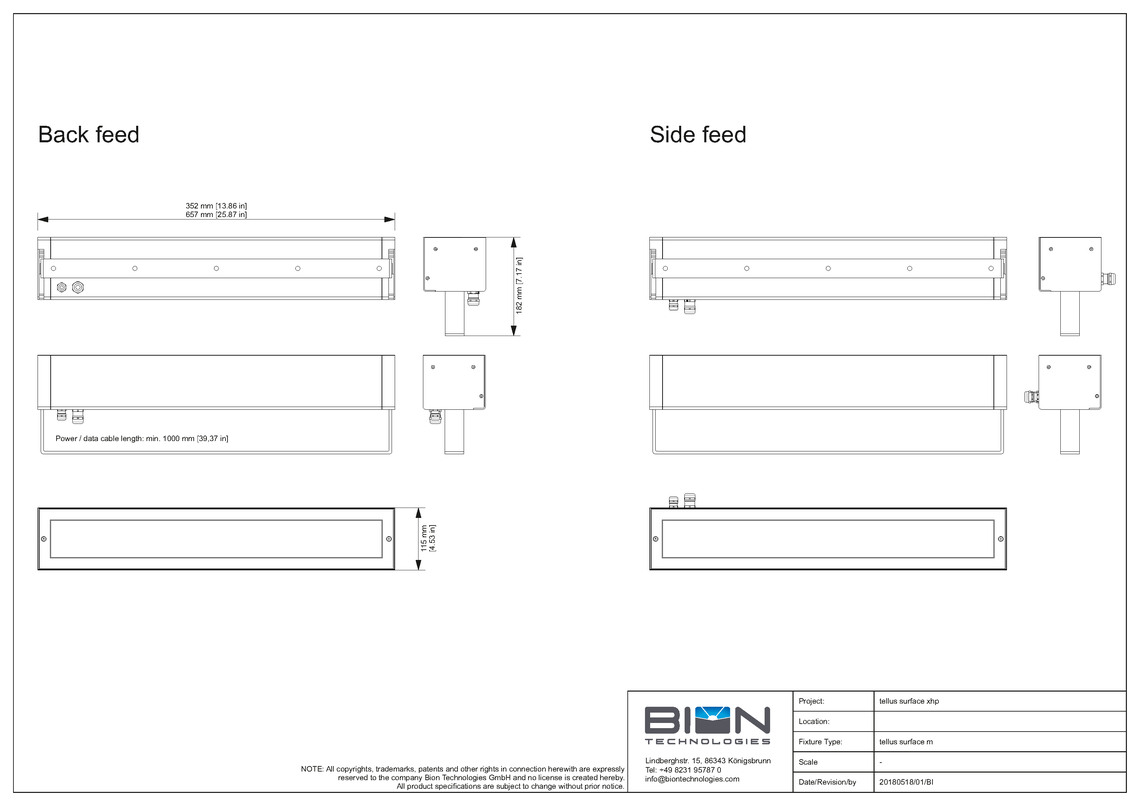

Dimensions

115 mm x 100 mm [W x H]
4.53 in x 3.94 in [W x H]

Standard Unit Lengths352 mm, 657 mm
13.86 in, 25.87 in
Luminaire Type
  RGBW
  RGBA
Color Temperature W-Channel2200 K, 2700 K, 3000 K, 3500 K, 4000 K
Beam Angles
Luminous Flux
352 mm (13,86 in):1764 lm
657 mm (25,87 in):3528 lm
Light Source
352 mm (13,86 in):24
657 mm (25,87 in):48
Color Rendering Index Ra >= 80
Antiglare
Honeycomb, linear louver
LED-Binning
MacAdam Ellipses Binning3
ControlDMX, IOT
Input Voltage
Power Supply: Internal | 100 - 240, 277 VAC (50 - 60 Hz) | 127 - 431 VDC
Power Consumption
352 mm(13,86 in):  Max. 42 W
657 mm(25,87 in):  Max. 84 W
Power Factor Correction

> 0,97 -> 115 VAC @ max. Output
> 0,95 -> 230 VAC @ max. Output
> 0,92 -> 277 VAC @ max. Output

Protection ClassII
Inrush55A @ 230VAC  (265 µs)
Operating Temperature Range-20 °C / +40 °C | -4 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingExtruded aluminium profile
Housing Color(s)
DB703
DB703 powdercoated
White
White powdercoated
Black
Black powdercoated
Custom
Custom Color RAL
LensTempered safety glass
FrameAluminium
Weight
352 mm (13.86 in): 6 kg(13.23 lbs)
657 mm (25.87 in): 9 kg(19.84 lbs)
Ingress ProtectionIP67
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 2200 K
  2. RGBW - 2700 K
  3. RGBW - 3000 K
  4. RGBW - 3500 K
  5. RGBW - 4000 K
  6. RGBA
DIMMING
  1. Non-dimmable
  2. Dimmable - DMX
  3. Dimmable - IOT
FIXTURE LENGTH
  1. 352 mm / 13.86 in
  2. 657 mm / 25.87 in
BEAM ANGLE
  1. 8° x 8°
  2. 10° x 10°
  3. 23° x 23°
  4. 43° x 43°
  5. 52° x 52°
  6. 8° x 31°
  7. 10° x 42°
  8. 12° x 60°
  9. 12° x 90°
  10. 30° x 60°
  11. 20° x 60° (Tilt C0: 10°)
  12. 20° x 60° (Tilt C0: -10°)
WIRING
  1. CE - Europe
  2. ETL - North America
HOUSING COLOR
  1. DB - DB703 powdercoated
  2. WH - White powdercoated
  3. BL - Black powdercoated
  4. RAL____ - Custom Color RAL
POSITION LEADER CABLE
  1. ZS - side feed
  2. ZR - back feed
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Honeycomb louver
  3. LL17 - Linear louver 17°
  4. LL00 - Linear louver 0°
  5. CGC - customized glare control
