linea xs eco
tunableWhite

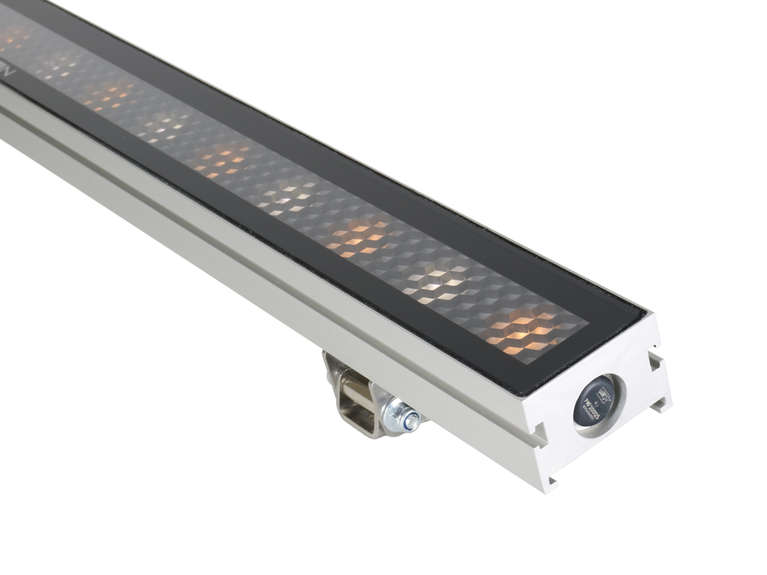

linea xs, the new low voltage member of our linea team, our family of linear facade luminaires. The newcomer linea xs not only fits seamlessly into the linea family with the same outstanding standard of the highest quality lighting technology and versatility in beam angles, but also extends this standard with additional options such as integrable linear louvres or honeycomb louvres for the best possible glare control.

One-Block-Design stands for an innovative concept in which the housing is manufactured from a single part. This reduces the number of sealing surfaces, possible weak points in the housing construction, to a minimum. The housing is manufactured from selected materials such as highly finished extruded aluminium profile and low-iron oxide tempered glass, which ensures a long lifetime of the luminaire even in the most adverse environments.

Dimensions

46 mm x 57 mm [W x H]
1.80 in x 2.25 in [W x H]

Standard Unit Lengths324 mm, 477 mm, 629 mm, 782 mm, 934 mm, 1087 mm, 1239 mm
12.76 in, 18.78 in, 24.77 in, 30.79 in, 36.78 in, 42.80 in, 48.78 in
Luminaire Type
  tunableWhite
Color Temperature tunableWhite2200 K - 4000 K
* Project-specific color temperature ranges for tunableWhite available.
Beam Angles
Lumen Output
324 mm (12,76 in):750 lm
477 mm (18,78 in):1125 lm
629 mm (24,77 in):1500 lm
782 mm (30,79 in):1875 lm
934 mm (36,78 in):2250 lm
1087 mm (42,80 in):2625 lm
1239 mm (48,78 in):3000 lm
Light Source
324 mm (12,76 in):8
477 mm (18,78 in):12
629 mm (24,77 in):16
782 mm (30,79 in):20
934 mm (36,78 in):24
1087 mm (42,80 in):28
1239 mm (48,78 in):32
Antiglareoptional:
  • Hex louver (internal)
  • Linear louver (internal)
LED-Binning
MacAdam Ellipses Binning3
ControlDALI, DMX
Input Voltage
Power Supply: External | 36 VDC
Power Consumption
324 mm(12,76 in):  Max. 5 W
477 mm(18,78 in):  Max. 7.5 W
629 mm(24,77 in):  Max. 10 W
782 mm(30,79 in):  Max. 12.5 W
934 mm(36,78 in):  Max. 15 W
1087 mm(42,80 in):  Max. 17.5 W
1239 mm(48,78 in):  Max. 20 W
Protection ClassII
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
HousingAluminum extruded profile
Housing Color(s)
Aluminium
Aluminium anodized (Standard)
Black
Black anodized
LensTempered safety glass, extra white
Weight
324 mm (12.76 in): 1,5 kg(3.31 lbs)
629 mm (24.77 in): 2,1 kg(4.63 lbs)
934 mm (36.78 in): 3,2 kg(7.05 lbs)
1239 mm (48.78 in): 4,4 kg(9.70 lbs)
Ingress ProtectionIP66
Environment
Impact ProtectionIK08
Certification

Accessories

Power Supply ND Series
Power Supply ND Series
linea xs/xc leader cable
linea xs/xc leader cable
linea xs/xc leader connection kit | SET
linea xs/xc leader connection kit | SET
linea xs/xc connection cable
linea xs/xc connection cable
linea xs/xc connection | SET
linea xs/xc connection | SET

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. tunableWhite - 2200 K - 4000 K
DIMMING
  1. Dimmable - DALI
  2. Dimmable - DMX
FIXTURE LENGTH
  1. 324 mm / 12.76 in
  2. 477 mm / 18.78 in
  3. 629 mm / 24.77 in
  4. 782 mm / 30.79 in
  5. 934 mm / 36.78 in
  6. 1087 mm / 42.80 in
  7. 1239 mm / 48.78 in
BEAM ANGLE
  1. 8° x 8°
  2. 10° x 10°
  3. 23° x 23°
  4. 43° x 43°
  5. 8° x 31°
  6. 10° x 42°
  7. 12° x 60°
  8. 14° x 100°
  9. 30° x 60°
  10. 60° x 30°
HOUSING COLOR
  1. AA - Aluminium anodized (Standard)
  2. BA - Black anodized
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Hex louver (internal)
  3. LL0 - Linear louver (internal)
WIRING CONFIGURATION
  1. IOCC - IN/OUT with Connector
  2. IXCX - only IN with Connector
  3. IOOC - IN open end / OUT socket
  4. IOOO - IN/OUT with open ends
  5. IXOX - only IN with open ends
LEADERCABLE LENGTH
  1. ETE - End to end - wiring
  2. 003 - + 30 cm (ca. 1 ft)
  3. 006 - + 60 cm (ca. 2 ft)
  4. 009 - + 90 cm (ca. 3 ft)
  5. 012 - + 1,2 m (ca. 4 ft)
MOUNTING OPTION
  1. ND - without bracket
  2. BS - Universal mounting bracket
