linea xs mp
tunableWhite

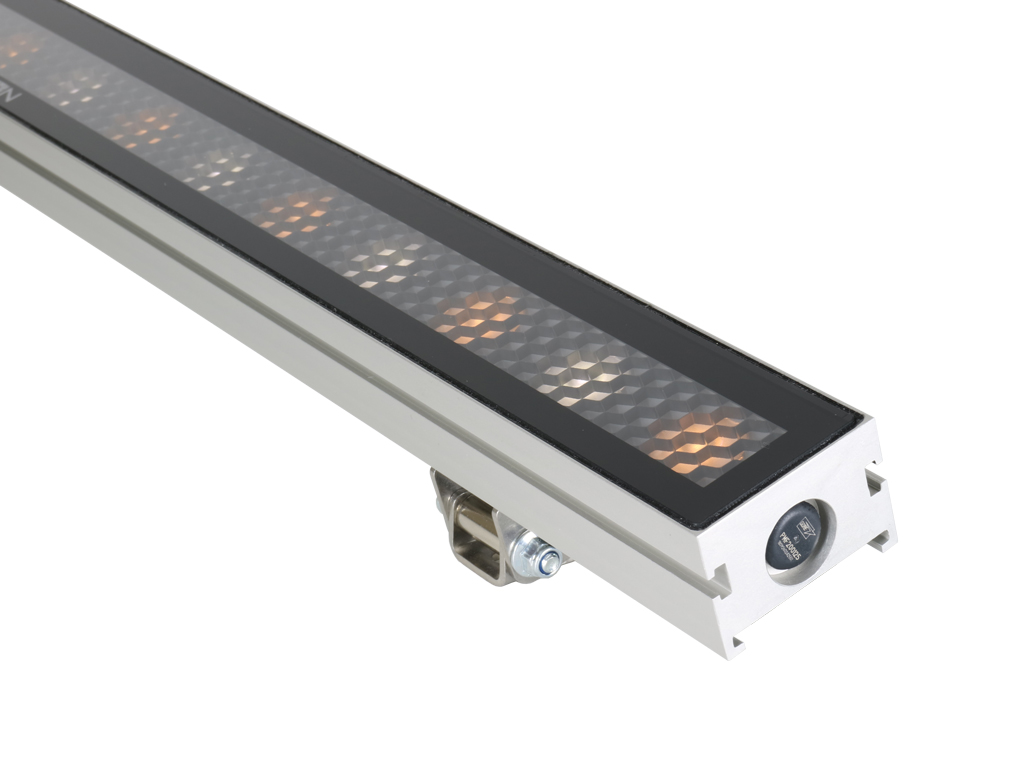

linea xs, the new low voltage member of our linea team, our family of linear facade luminaires. The newcomer linea xs not only fits seamlessly into the linea family with the same outstanding standard of the highest quality lighting technology and versatility in beam angles, but also extends this standard with additional options such as integrable linear louvres or honeycomb louvres for the best possible glare control.
One-Block-Design stands for an innovative concept in which the housing is manufactured from a single part. This reduces the number of sealing surfaces, possible weak points in the housing construction, to a minimum. The housing is manufactured from selected materials such as highly finished extruded aluminium profile and low-iron oxide tempered glass, which ensures a long lifetime of the luminaire even in the most adverse environments.
Dimensions | 46 mm x 57 mm [W x H] | |||||||||||||||||||||
Standard Unit Lengths | 324 mm, 477 mm, 629 mm, 782 mm, 934 mm, 1087 mm, 1239 mm 12.76 in, 18.78 in, 24.77 in, 30.79 in, 36.78 in, 42.80 in, 48.78 in | |||||||||||||||||||||
Luminaire Type |   tunableWhite | |||||||||||||||||||||
Color Temperature tunableWhite | 2200 K - 4000 K * Project-specific color temperature ranges for tunableWhite available. | |||||||||||||||||||||
Beam Angles | ||||||||||||||||||||||
Light Source |
| |||||||||||||||||||||
Antiglare | optional:
| |||||||||||||||||||||
LED-Binning | ||||||||||||||||||||||
MacAdam Ellipses Binning | 3 | |||||||||||||||||||||
Control | DALI, DMX | |||||||||||||||||||||
Input Voltage | Power Supply: External | 36 VDC | |||||||||||||||||||||
Power Consumption |
| |||||||||||||||||||||
Protection Class | II | |||||||||||||||||||||
Storage Temperature | -40 °C / +80 °C | -40 °F / +176 °F | |||||||||||||||||||||
Operating Temperature | -40 °C / +40 °C | -40 °F / +104 °F | |||||||||||||||||||||
Start-up Temperature | -25 °C / +40 °C | -13 °F / +104 °F | |||||||||||||||||||||
Lumen Maintenance [L70] | 65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F) | |||||||||||||||||||||
Housing | Aluminum extruded profile | |||||||||||||||||||||
Housing Color(s) | Aluminium anodized (Standard) Black anodized | |||||||||||||||||||||
Lens | Tempered safety glass, extra white | |||||||||||||||||||||
Weight |
| |||||||||||||||||||||
Ingress Protection | IP66 | |||||||||||||||||||||
Environment | ||||||||||||||||||||||
Impact Protection | IK08 | |||||||||||||||||||||
Certification |
