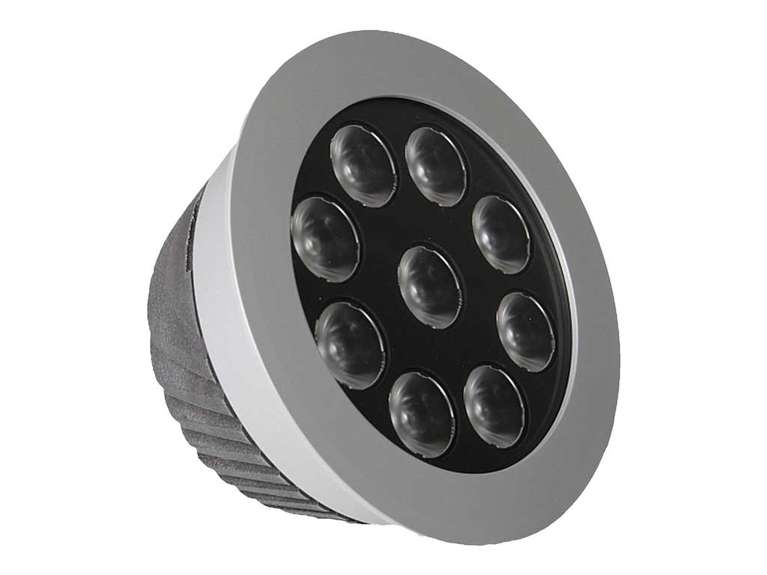

tectum m

tectum m
pureWhite | pureColor

The vertical downlight for high ceilings

You need a powerful recessed depth beamer for highlighting ground objects? This is the realm of tectum m. Its adjustable focusing option of up to 6° provides pinpoint lighting from high ceilings including various circular symmetric or oval asymmetric beam planforms for traffic surfaces or entrance zones.

Quicklinks

DimensionsDiameter: 125 mm (4.92 in), Height: 65 mm (2.56 in)
Luminaire Type
  pureWhite
  pureColor
pureWhite Color Temperatures2700 K, 3000 K, 3500 K, 4000 K
* Project-specific color temperatures for pureWhite available.
pureColor LED-ColorsRed, Green, Blue, Amber
* Project-specific colors for pureColor available.
Beam Angles
Lumen Output1176 lm

pureColor Red 571 lm
pureColor Green 961 lm
pureColor Blue 413 lm
pureColor Amber 478 lm
Light Source9 x LED
Color Rendering Index Ra >= 80
LED-Binning
MacAdam Ellipses Binning3
DimmingNon-dimmable | Dimmable (DMX)
Input Voltage Power Supply: External
Dimmable DMX 36 VDC  ||   Non-dimmable 500 mA | 29 VDC
Power ConsumptionMax. 15 W
Protection ClassII
Storage Temperature-20 °C / +40 °C | -4 °F / +104 °F
Operating Temperature-20 °C / +40 °C | -4 °F / +104 °F
Start-up Temperature-20 °C / +40 °C | -4 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
LED-ClassClass 2 LED product
HousingAluminum Heat sink: Titan anodized
Housing Color(s)
Aluminium
Aluminium anodized (Standard)
Titanium
Titanium anodized
Black
Black anodized
FrameNatural anodized (Standard), Titan anodized, Black anodized
Installation Depth63 mm (2.49 in)
Cut-outDiameter: 115 mm (4.52 in)
Ingress ProtectionIP20
Environment
Certification

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. pureWhite - 2700 K
  2. pureWhite - 3000 K
  3. pureWhite - 3500 K
  4. pureWhite - 4000 K
  5. pureColor - Red
  6. pureColor - Green
  7. pureColor - Blue
  8. pureColor - Amber
DIMMING
  1. Non-dimmable
  2. Dimmable - DMX
BEAM ANGLE
  1. 8° x 8°
  2. 10° x 10°
  3. 23° x 23°
  4. 43° x 43°
  5. 52° x 52°
  6. 8° x 31°
  7. 10° x 42°
  8. 12° x 60°
  9. 12° x 90°
  10. 20° x 60° (Tilt C0: 10°)
HOUSING COLOR
  1. AA - Aluminium anodized (Standard)
  2. TA - Titanium anodized
  3. BL - Black anodized
Max. Fixtures per Feed

PS 500 indoor: Max. 30 fixtures (refer to cabling guide with PS 500)
PS 250 indoor: Max. 15 fixtures (refer to cabling guide with PS 250)
Inputcablelength factory wired 1m [39.37"]
