linea xs inground hp
RGBW

linea xs inground not only fits seamlessly into the linea xs family with the same outstanding standard of the highest quality lighting technology and versatility in beam angles and extends the family with the possibility of lighting facades or similar from the ground.

One-Block-Design stands for an innovative concept in which the housing is manufactured from a single part. This reduces the number of sealing surfaces, possible weak points in the housing construction, to a minimum. The housing is manufactured from selected materials such as highly finished extruded aluminium profile and low-iron oxide tempered glass, which ensures a long lifetime of the luminaire even in the most adverse environments.

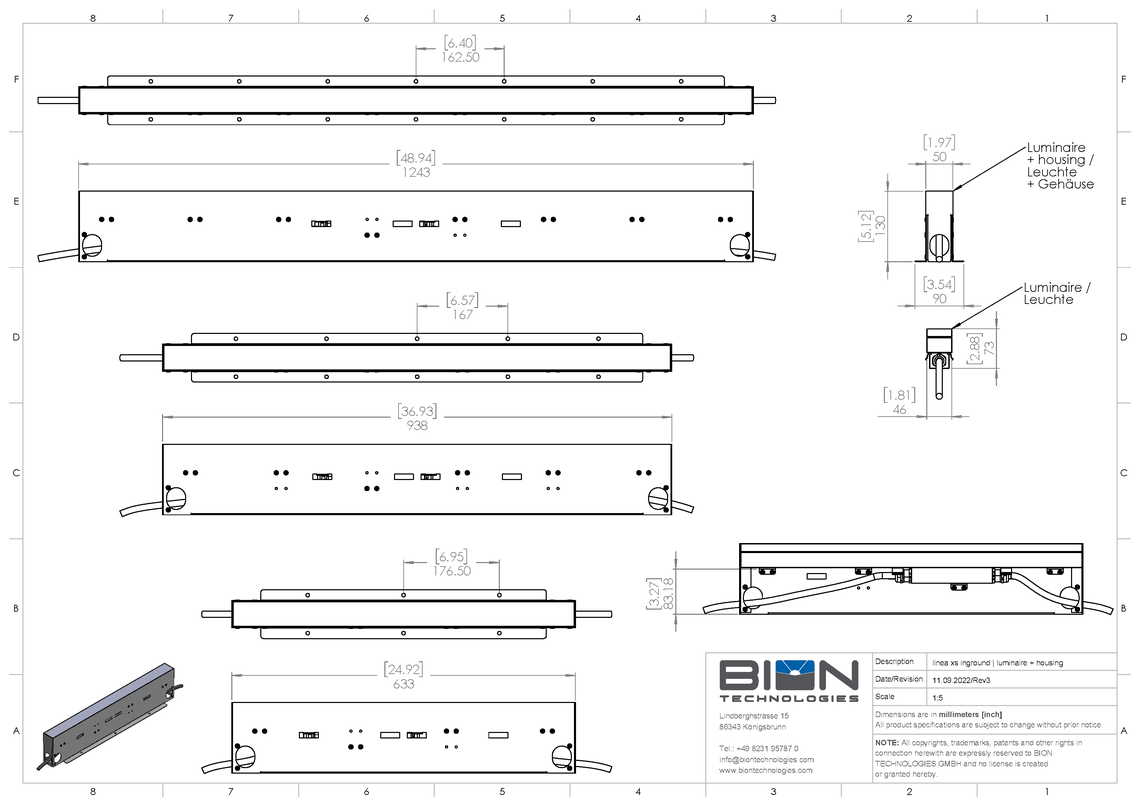

Dimensions

46 mm x 74 mm [W x H]
1.81 in x 2.91 in [W x H]

Installation housing:
50 mm x 130 mm [W x H]
1.97 in x 5.12 in [W x H]

Standard Unit Lengths629 mm, 934 mm, 1239 mm
24.77 in, 36.78 in, 48.78 in
Luminaire Type
  RGBW
Color Temperature W-Channel2200 K, 2700 K, 3000 K, 3500 K, 4000 K, 6500 K
Beam Angles
Lumen Output
629 mm (24,77 in):1116 lm
934 mm (36,78 in):1674 lm
1239 mm (48,78 in):2232 lm
Light Source
629 mm (24,77 in):16
934 mm (36,78 in):24
1239 mm (48,78 in):32
Color Rendering Index Ra >= 80
Antiglareoptional:
  • Hex louver (internal)
  • Linear louver (internal)
LED-Binning
MacAdam Ellipses Binning3
ControlDMX
Input Voltage
Power Supply: External | 36 VDC
EXT: Constant current, max. 500 mA
Power Consumption
629 mm(24,77 in):  Max. 28 W
934 mm(36,78 in):  Max. 42 W
1239 mm(48,78 in):  Max. 56 W
Protection ClassII
Storage Temperature-40 °C / +80 °C | -40 °F / +176 °F
Operating Temperature-40 °C / +40 °C | -40 °F / +104 °F
Start-up Temperature-25 °C / +40 °C | -13 °F / +104 °F
Lumen Maintenance [L70]65’000 h @ 25 °C (77 °F) | 40‘000 h @ 40 °C (104 °F)
HousingAluminum extruded profile
Housing Color(s)
Black
Black anodized
LensTempered safety glass, extra white
Ingress ProtectionIP67
Environment
Impact ProtectionIK09
Certification

Accessories

Power Supply ND Series
Power Supply ND Series

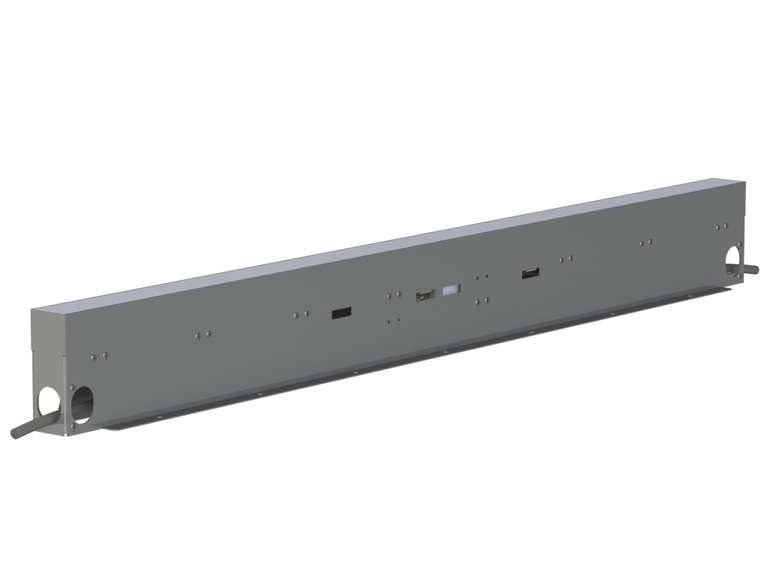

linea inground xs installation box
linea inground xs installation box

Your order code:

  Send request When the background gets green, your selection is complete!

Please choose from the options below.

* mandatory fields

TYP - LUMINOUS COLOR
  1. RGBW - 2200 K
  2. RGBW - 2700 K
  3. RGBW - 3000 K
  4. RGBW - 3500 K
  5. RGBW - 4000 K
  6. RGBW - 6500 K
DIMMING
  1. Dimmable - DMX
FIXTURE LENGTH
  1. 629 mm / 24.77 in
  2. 934 mm / 36.78 in
  3. 1239 mm / 48.78 in
BEAM ANGLE
  1. 8° x 8°
  2. 10° x 10°
  3. 23° x 23°
  4. 43° x 43°
  5. 8° x 31°
  6. 10° x 42°
  7. 12° x 60°
  8. 14° x 100°
  9. 30° x 60°
  10. 60° x 30°
GLARE PROTECTION
  1. OP - No glare protection
  2. HL - Hex louver (internal)
  3. LL0 - Linear louver (internal)
